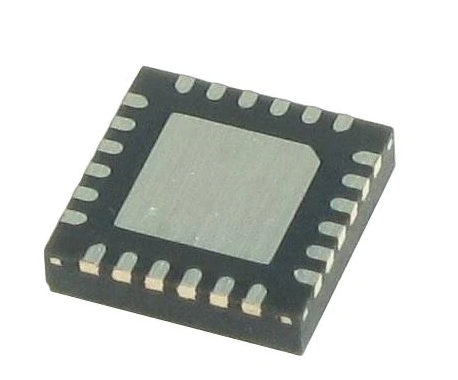

HMC704LP4ETR

Manufacturer Part Number: HMC704LP4ETR Manufacturer / Brand: ADI
Part of Description: Phase Locked Loops - PLL 8 GHz 19-Bit Fractional-N PLL Lead Free Status / RoHS Status: 16-bit Microcontrollers - MCU MCU 3/5V 56K Pb-free 64-QFP
Ship From: HK/Shen Zhen Shipment Way: DHL/Fedex/TNT/UPS
Datasheets:

Product parameters

ManufacturerADI
DetailsRoHS
Mounting StyleSMD/SMT
Package / CaseQFN-24
Minimum Operating Temperature– 40 C
Maximum Operating Temperature+85 C
PackagingReel
Moisture SensitiveYes
Product TypePLLs – Phase Locked Loops
Factory Pack Quantity500
SubcategoryWireless & RF Integrated Circuits
SeriesHMC704
TechnologySi
Unit Weight0.032741 oz

Get in touch with us now

    Please submit your BOM List or Input the part online

    Please complete all required fields with your contact information.Click "SUBMIT REQUEST" we will contact you shortly by email. Or Email us: Sales001@easyiee.com

    First name *

    Last name *

    Company Email *

    Phone number *

    Company name *

    Country *

    Upload file: We support .xls, .xlsx and .csv files under 4MB

    CHOOSE FILE

    Please submit your BOM List or Input the part online

    SUBMIT INFORMATION

    The HMC704LP4ETR is a high-performance clock generator and PLL (Phase-Locked Loop) frequency synthesizer designed for a wide range of RF (Radio Frequency) applications. Fabricated using advanced SiGe BiCMOS technology, this device offers exceptional phase noise and low spurious content, making it ideal for applications that require high spectral purity.

    Operating from DC to 8 GHz, the HMC704LP4ETR features a 19-bit prescaler and a fractional-N PLL architecture that provides precise frequency control and generation. With an ultra-low in-close phase noise and low spurious performance, this device supports wide loop bandwidths, enabling faster frequency hopping and reduced microphonics.

    The HMC704LP4ETR incorporates a very low noise digital phase detector, VCO divider, reference divider, and a precision-controlled charge pump, all integrated into a single 4×4 mm QFN24 package. This compact packaging, combined with its high performance, makes the HMC704LP4ETR an excellent choice for applications such as microwave point-to-point radios, base stations for mobile radio (GSM, PCS, DCS, CDMA, WCDMA), wireless LANs, WiMAX, communications test equipment, CATV equipment, and the automotive industry.

    Additionally, the HMC704LP4ETR offers a serial interface that provides read-back capability and is compatible with a wide variety of protocols. This feature allows for easy configuration and monitoring of the device’s performance.

    Overall, the HMC704LP4ETR is a versatile and high-performance clock generator and PLL frequency synthesizer that combines exceptional phase noise, low spurious content, and compact packaging to meet the demands of modern RF applications.
