HMC1060LP3ETR

HMC1060LP3ETR is a quad, high-current linear voltage regulator designed for use in a wide range of applications. This IC features four independent voltage regulators, each capable of providing stable output voltages within a specified range. The regulators are well-suited for applications requiring precise voltage control and low dropout performance.

Key Features:

1. Quad Voltage Regulators:
   • Provides four independent, adjustable output voltages.
   • Output voltage range: 1.8V to 5.2V.
2. High Current Capability:
   • Each regulator can supply up to 100mA, 50mA, 50mA, and 300mA respectively.
   • Suitable for applications with high current demands.
3. Low Dropout Voltage:
   • Ensures stable output voltage even with minimal input-to-output voltage differential.
4. Precision and Stability:
   • Designed for high accuracy and low ripple in the output voltage.
5. Compact Package:

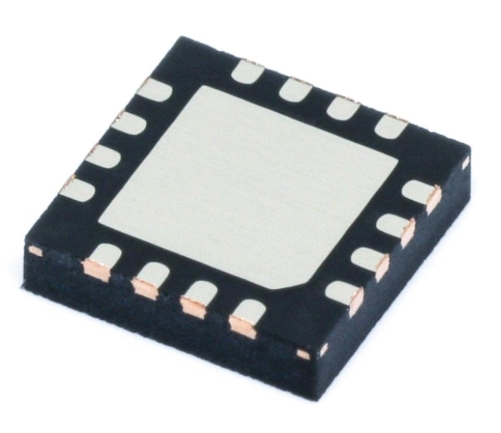

   • Packaged in a QFN16 3x3mm package, suitable for space-constrained designs.
6. Operating Temperature Range:
   • Operates within a temperature range of -40°C to +85°C.
7. Enable Pin:
   • Provides control over the regulator’s output, allowing for power-saving features when not in use.
8. Adjustable Output:
   • The output voltage can be adjusted using external components, providing flexibility in design.

Applications:

HMC1060LP3ETR is ideal for a variety of applications including, but not limited to:

• Precision amplifiers
• Portable devices
• Embedded systems
• Industrial controls
• Any application requiring multiple, stable, and adjustable voltage supplies.

Packaging and Availability:

HMC1060LP3ETR is available in reel, tray, tube, or box packaging options, depending on customer requirements. Samples and large quantities can be ordered from various electronic component suppliers.

Conclusion:

HMC1060LP3ETR is a versatile and reliable quad, high-current linear voltage regulator that offers precision, stability, and flexibility in design. Its compact package and wide operating temperature range make it suitable for a range of applications, from portable devices to industrial controls.
