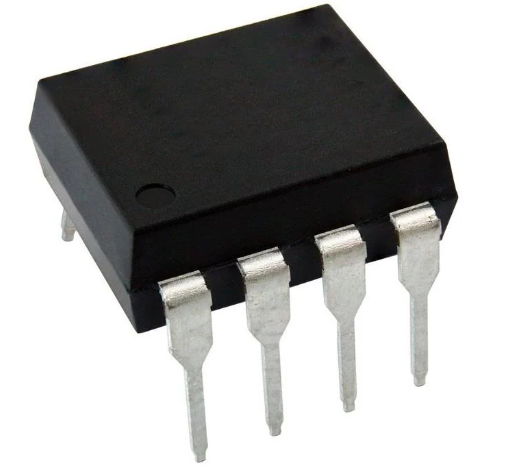

HCPL-4504-000E

Manufacturer Part Number: HCPL-4504-000E Manufacturer / Brand: Broadcom
Part of Description: High Speed Optocouplers 1MBd 1Ch 12mA Lead Free Status / RoHS Status: 16-bit Microcontrollers - MCU MCU 3/5V 56K Pb-free 64-QFP
Ship From: HK/Shen Zhen Shipment Way: DHL/Fedex/TNT/UPS
Datasheets:

Product parameters

ManufacturerBroadcom
DetailsRoHS
Mounting StyleSMD/SMT
Package / CasePDIP-8
Minimum Operating Temperature– 55 C
Maximum Operating Temperature+100 C
PackagingTube
Moisture SensitiveYes
Product TypeHigh Speed Optocouplers
Factory Pack Quantity50
SubcategoryOptocouplers
Height3.56 mm
Width6.35 mm
Unit Weight0.035274 oz
