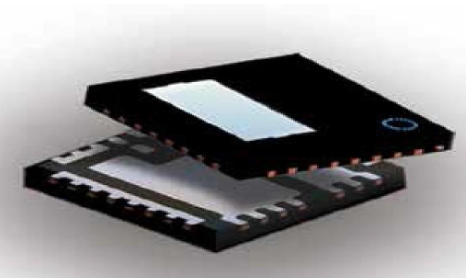

FDMF3035
Manufacturer Part Number: FDMF3035 | Manufacturer / Brand: ON |
Part of Description: Gate Drivers Smart Power Stage (SPS) Module | Lead Free Status / RoHS Status: ![]() |
Ship From: HK/Shen Zhen | Shipment Way: DHL/Fedex/TNT/UPS |
Datasheets: |
Product parameters
Manufacturer | ON |
RoHS | Details |
Mounting Style | SMD/SMT |
Package / Case | PQFN-31 |
Number of Drivers | 1 Driver |
Number of Outputs | 1 Output |
Packaging | Reel |
Minimum Operating Temperature | – 40 C |
Maximum Operating Temperature | + 125 C |
Factory Pack Quantity | 3000 |
Subcategory | PMIC – Power Management ICs |
Technology | Si |
Unit Weight | 0.004280 oz |
Get in touch with us now
The FDMF3035 is a high-performance N-channel MOSFET from Fairchild Semiconductor (now part of ON Semiconductor), designed for use in power management and switching applications. It offers a combination of high efficiency, low power loss, and compact size, making it suitable for various electronic circuits.
Key Features:
- N-Channel MOSFET: Provides efficient switching and power management with low on-resistance (R_DS(on)) for reduced power dissipation.
- Low On-Resistance: Features very low on-resistance, typically around 5 milliohms, which minimizes conduction losses and enhances overall efficiency.
- High Current Capability: Capable of handling high currents, typically up to 40A, making it suitable for high-power applications.
- High Voltage Rating: Operates with a maximum drain-source voltage (V_DS) of up to 30V, suitable for various power switching tasks.
- Fast Switching Speed: Offers fast switching times, which is beneficial for high-frequency applications and efficient operation.
- Thermal Performance: Designed with good thermal characteristics, allowing effective heat dissipation and stable operation in demanding environments.
Typical Applications:
- Power Management: Used in power management circuits for efficient switching and regulation of power supplies.
- DC-DC Converters: Applied in DC-DC converter designs to improve efficiency and reduce power losses.
- Switching Regulators: Employed in switching regulators to manage power conversion and enhance performance.
- Consumer Electronics: Utilized in various consumer electronic devices for power switching and management tasks.
The FDMF3035 is valued for its low on-resistance, high current capability, and fast switching speed, making it an effective choice for power management and switching applications in a variety of electronic circuits.
