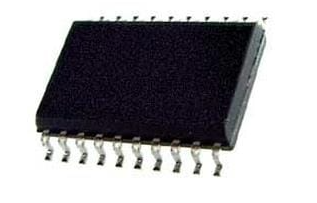

FAN7888MX

Manufacturer Part Number: FAN7888MX Manufacturer / Brand: ON
Part of Description: Gate Drivers 3Ch Half Bridge Gate Lead Free Status / RoHS Status: 16-bit Microcontrollers - MCU MCU 3/5V 56K Pb-free 64-QFP
Ship From: HK/Shen Zhen Shipment Way: DHL/Fedex/TNT/UPS
Datasheets:

Product parameters

ManufacturerON
DetailsRoHS
Mounting StyleSMD/SMT
Package / CaseSOIC-20
Minimum Operating Temperature– 40 C
Maximum Operating Temperature+125 C
PackagingReel
SeriesFAN7888
Moisture SensitiveYes
Factory Pack Quantity1000
SubcategoryDigital Potentiometer ICs
Supply TypeSingle, Dual
TechnologySi
Unit Weight0.028254 oz

Get in touch with us now

    Please submit your BOM List or Input the part online

    Please complete all required fields with your contact information.Click "SUBMIT REQUEST" we will contact you shortly by email. Or Email us: Sales001@easyiee.com

    First name *

    Last name *

    Company Email *

    Phone number *

    Company name *

    Country *

    Upload file: We support .xls, .xlsx and .csv files under 4MB

    CHOOSE FILE

    Please submit your BOM List or Input the part online

    SUBMIT INFORMATION

    The FAN7888MX is a monolithic three half-bridge gate-drive IC designed for high-voltage, high-speed driving of MOSFETs and IGBTs operating up to +200V. It is manufactured by a reputable semiconductor company, incorporating advanced technology to ensure stable and reliable performance.

    Key Features:

    1. Floating Channel for Bootstrap Operation: The FAN7888MX features a floating channel that allows bootstrap operation up to +200V, making it suitable for high-voltage applications.
    2. High Sourcing/Sinking Current: The output drivers of the FAN7888MX can typically source/sink 350mA/650mA, respectively, which is ideal for three-phase half-bridge applications in motor drive systems.
    3. Advanced Level-Shift Circuit: An advanced level-shift circuit allows high-side gate driver operation up to VS = -9.8V (typical) for VBS = 15V, enhancing flexibility and performance.
    4. UVLO Circuits: The under-voltage lockout (UVLO) circuits prevent malfunction when VDD and VBS are lower than the specified threshold voltage, ensuring safe and reliable operation.
    5. Built-in Protection Circuits: The FAN7888MX includes built-in shoot-through prevention and common-mode dv/dt noise canceling circuits, providing additional protection and stability.
    6. Compatible Input Logic: The IC is compatible with both 3.3V and 5V input logic, making it versatile and easy to integrate into various systems.
    7. Operating Temperature Range: The FAN7888MX can operate within a temperature range of -40°C to +125°C, making it suitable for a wide range of environments.

    Applications:

    The FAN7888MX is ideal for use in three-phase motor inverter drivers and other high-voltage, high-speed power conversion applications. Its compact design, high performance, and reliability make it a popular choice among engineers and system designers.

    In summary, the FAN7888MX is a high-performance, monolithic three half-bridge gate-drive IC that offers a combination of advanced features and reliable performance. Its versatility and compatibility make it suitable for a wide range of high-voltage, high-speed power conversion applications.
