ESDR0502BT1G

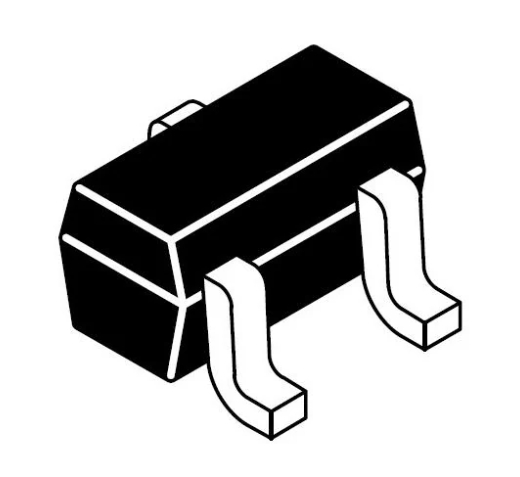

Manufacturer Part Number: ESDR0502BT1G Manufacturer / Brand: ON
Part of Description: ESD Protection Diodes / TVS Diodes TWO CHANNEL LOW CAP ESD Lead Free Status / RoHS Status: table_img Lead free / RoHS Compliant
Ship From: HK/Shen Zhen Shipment Way: DHL/Fedex/TNT/UPS
Datasheets:

Product parameters

ManufacturerON
RoHSDetails
Mounting StyleSMD/SMT
Package / CaseSC-75-3
Vesd – Voltage ESD Contact11 kV
Vesd – Voltage ESD Air Gap15 kV
PackagingReel
Minimum Operating Temperature– 55 C
Maximum Operating Temperature+ 150 C
Factory Pack Quantity3000
SubcategoryTVS Diodes / ESD Suppression Diodes
Product TypeESD Suppressors
Unit Weight0.000106 oz

Get in touch with us now

    Please submit your BOM List or Input the part online

    Please complete all required fields with your contact information.Click "SUBMIT REQUEST" we will contact you shortly by email. Or Email us: Sales001@easyiee.com

    First name *

    Last name *

    Company Email *

    Phone number *

    Company name *

    Country *

    Upload file: We support .xls, .xlsx and .csv files under 4MB

    CHOOSE FILE

    Please submit your BOM List or Input the part online

    SUBMIT INFORMATION

    The ESDR0502BT1 is a high-performance Electrostatic Discharge (ESD) protection device designed to safeguard sensitive electronic components from voltage spikes and transients. It provides reliable protection for circuits against electrostatic discharge, ensuring long-term reliability and durability of electronic systems.

    Key Features:

    • ESD Protection: Offers robust protection against electrostatic discharge (ESD) events, typically handling ESD strikes up to ±8kV (air discharge) and ±4kV (contact discharge) according to IEC 61000-4-2 standards.
    • Low Capacitance: Features low capacitance, generally around 0.5pF, minimizing signal distortion and maintaining signal integrity in high-speed applications.
    • Low Leakage Current: Designed with low leakage current, ensuring minimal impact on the overall circuit performance and power consumption.
    • Compact Package: Housed in a small, surface-mount package (e.g., SOD-523), suitable for space-constrained designs and providing easy integration into compact electronic assemblies.
    • Fast Response Time: Provides a quick response time to transient events, effectively clamping voltage spikes and protecting sensitive components from damage.

    Typical Applications:

    • Consumer Electronics: Used in consumer electronics such as smartphones, tablets, and laptops to protect delicate circuits from ESD events.
    • Communication Devices: Applied in communication devices including routers, modems, and networking equipment to ensure reliable operation and prevent damage from transient voltage spikes.
    • Automotive Systems: Employed in automotive electronics for protecting control units and sensors from ESD damage in automotive environments.
    • Industrial Equipment: Utilized in industrial control systems and machinery to safeguard electronic components from voltage transients and ensure reliable operation.

    The ESDR0502BT1 is valued for its effective ESD protection, low capacitance, and compact size, making it an ideal choice for protecting sensitive electronic components in various applications.
