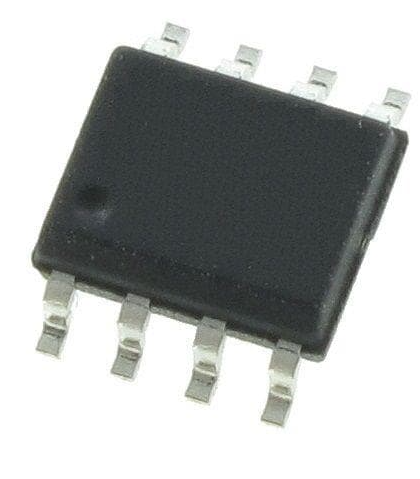

EPCS16SI8N
Manufacturer Part Number: AT24C64D-SSHM-T | Manufacturer / Brand: Microchip |
Part of Description: EEPROM SERIAL EEPROM 64K 2-WIRE 1.7V | Lead Free Status / RoHS Status: 16-bit Microcontrollers - MCU MCU 3/5V 56K Pb-free 64-QFP |
Ship From: HK/Shen Zhen | Shipment Way: DHL/Fedex/TNT/UPS |
Datasheets: |
Product parameters
Manufacturer | Altera |
Details | RoHS |
Mounting Style | SMD/SMT |
Package / Case | SOIC-8 |
Minimum Operating Temperature | – 40 C |
Maximum Operating Temperature | +85 C |
Packaging | Tube |
Moisture Sensitive | Yes |
Operating Supply Current | 50 uA |
Factory Pack Quantity | 100 |
Subcategory | Programmable Logic ICs |
Tradename | Enpirion |
Part # Aliases | 974777 |
Unit Weight | 0.737226 oz |
Get in touch with us now
The AT24C64D-SSHM-T is a 64Kbit (8K x 8-bit) serial EEPROM (Electrically Erasable Programmable Read-Only Memory) manufactured by Microchip Technology. It features an I2C (2-wire) serial interface that is compatible with both 400 kHz and 1 MHz clocks. This device is optimized for use in consumer, industrial, and automotive applications where reliable non-volatile memory storage is crucial.
The AT24C64D-SSHM-T offers self-timed erase and write cycles with a maximum duration of 5ms. It has a typical read current of 0.4 mA and a maximum of 1 mA, while the typical write current is 2 mA with a maximum of 3 mA. The standby current is a mere 6 uA at maximum. Additionally, it includes a hardware write protection pin to ensure data integrity.
The EEPROM provides a high endurance of over 1 million erase/write cycles and guarantees data retention for over 100 years. It operates within a temperature range of -40°C to 125°C (for the 1st level), -40°C to 105°C (for the 2nd level), and -40°C to 85°C (for the 3rd level). The AT24C64D-SSHM-T also conforms to automotive application standards and offers factory programming services.
In terms of packaging, the AT24C64D-SSHM-T is available in various space-saving options such as 8-pin SOIC, 8-pin TSSOP, 8-pad UDFN, 8-pad XDFN, and 8-ball VFBGA packages. This versatility allows it to be integrated into a wide range of applications while maintaining a small footprint.
Overall, the AT24C64D-SSHM-T is a reliable and versatile EEPROM solution suitable for a multitude of industrial, commercial, and automotive applications requiring non-volatile memory storage.
