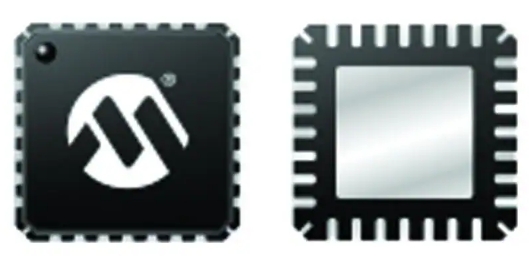

dsPIC30F2010-20E/MM

The dsPIC30F2010 is a 16-bit Digital Signal Controller (DSC) from Microchip Technology, designed for high-performance, real-time control applications. It combines the capabilities of a microcontroller (MCU) with the computational power of a Digital Signal Processor (DSP), making it ideal for complex embedded systems. Here’s a detailed description of its key features:

Key Features

• Architecture: 16-bit modified Harvard architecture with a 24-bit instruction set, offering efficient processing and high-speed performance.
• CPU Speed: Operates at speeds up to 30 MIPS (Million Instructions Per Second), allowing for rapid execution of control algorithms.
• Program Memory: Includes up to 12 KB of Flash memory for storing firmware and application code.
• RAM: Features 512 bytes of SRAM for data storage and manipulation.
• Peripheral Support: Equipped with a variety of peripherals including UART, SPI, I2C, PWM, and A/D converters for versatile connectivity and control.
• Analog-to-Digital Converter: Includes a 10-bit A/D converter with up to 6 input channels, enabling accurate analog signal processing.
• Timers: Multiple 16-bit timers available for precise timing and control operations.
• PWM Module: Built-in PWM module for motor control and power management applications.
• Package Types: Available in multiple package options, including SOIC, PDIP, and QFN, for flexible integration into different designs.

Performance

• Real-Time Control: Combines MCU and DSP functionality to handle complex real-time control tasks efficiently.
• High Precision: 10-bit A/D converter and PWM module ensure high precision in analog signal processing and motor control applications.
• Efficient Power Management: Supports various low-power modes to optimize energy consumption, making it suitable for battery-powered applications.

Features and Benefits

• Integrated MCU and DSP: Provides the flexibility of a microcontroller with the computational power of a DSP, enabling advanced control and signal processing in a single chip.
• Versatile Peripheral Set: Supports a wide range of peripherals, making it adaptable for various applications including motor control, sensor interfacing, and communication.
• Compact Design: Available in compact packaging, facilitating integration into space-constrained designs.

Applications

• Motor Control: Ideal for controlling AC/DC motors, stepper motors, and servo motors in industrial and automotive applications.
• Power Management: Used in power supply regulation, battery management, and energy-efficient control systems.
• Embedded Systems: Suitable for complex embedded systems requiring real-time processing and precise control, such as robotics, automation, and instrumentation.
• Signal Processing: Handles audio processing, sensor data analysis, and other DSP-intensive tasks in consumer electronics and communication devices.

The dsPIC30F2010 is designed to deliver high-performance control and signal processing capabilities in a wide range of applications, making it a versatile and powerful choice for engineers and designers working on advanced embedded systems.
