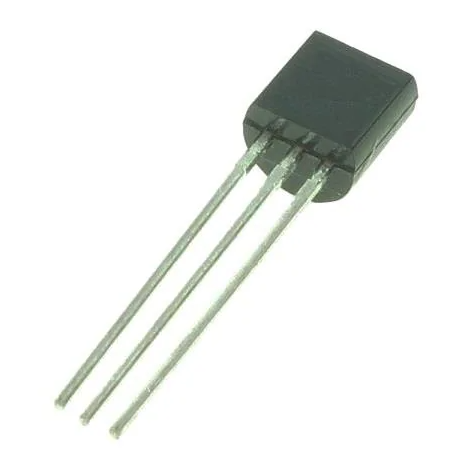

DS18B20+

Manufacturer Part Number: DS18B20+ Manufacturer / Brand: ADI
Part of Description: Thermostats Programmable Resolution 1-Wire Digital T Lead Free Status / RoHS Status: 16-bit Microcontrollers - MCU MCU 3/5V 56K Pb-free 64-QFP
Ship From: HK/Shen Zhen Shipment Way: DHL/Fedex/TNT/UPS
Datasheets:

Product parameters

ManufacturerADI
DetailsRoHS
Mounting StyleSMD/SMT
PackagingBulk
Moisture SensitiveYes
Product TypeThermostats
Factory Pack Quantity2000
SubcategorySensors
Part # AliasesDS18B20 90-18B20+000
Unit Weight0.007055 oz

Get in touch with us now

    Please submit your BOM List or Input the part online

    Please complete all required fields with your contact information.Click "SUBMIT REQUEST" we will contact you shortly by email. Or Email us: Sales001@easyiee.com

    First name *

    Last name *

    Company Email *

    Phone number *

    Company name *

    Country *

    Upload file: We support .xls, .xlsx and .csv files under 4MB

    CHOOSE FILE

    Please submit your BOM List or Input the part online

    SUBMIT INFORMATION

    The DS18B20 is a programmable resolution 1-Wire digital thermometer produced by Dallas Semiconductors (now part of Maxim Integrated). It provides 9-bit to 12-bit Celsius temperature measurements and incorporates an alarm function with nonvolatile, user-programmable upper and lower trigger points.

    Key Features

    1. Unique 1-Wire Interface:

      • The DS18B20 communicates over a 1-Wire bus, which by definition requires only one data line (and ground) for communication with a central microprocessor.
      • This simplifies the wiring and reduces the number of pins required on the microprocessor.
    2. Wide Operating Temperature Range:

      • The operating temperature range is from -55°C to +125°C.
      • It offers an accuracy of ±0.5°C over the range of -10°C to +85°C.
    3. Power Supply Options:

      • The DS18B20 can derive power directly from the data line (known as “parasite power”), eliminating the need for an external power supply in many applications.
      • Alternatively, it can be powered by an external supply on the VDD pin.
    4. Unique 64-Bit Serial Code:

      • Each DS18B20 has a unique 64-bit serial code stored in an on-board ROM.
      • This allows multiple DS18B20s to function on the same 1-Wire bus, making it simple to use one microprocessor to control many DS18B20s distributed over a large area.
    5. Alarm Function:

      • The DS18B20 includes a user-definable, nonvolatile (NV) alarm setting.
      • The alarm search command identifies and addresses devices whose temperature is outside the programmed limits.
    6. Scratchpad Memory:

      • The scratchpad memory contains a 2-byte temperature register that stores the digital output from the temperature sensor.
      • It also provides access to the 1-byte upper and lower alarm trigger registers (TH and TL) and the 1-byte configuration register.
    7. Configuration Register:

      • The configuration register allows the user to set the resolution of the temperature-to-digital conversion to 9, 10, 11, or 12 bits.
      • The TH, TL, and configuration registers are nonvolatile (EEPROM), so they retain data when the device is powered down.

    Applications

    The DS18B20 is suitable for a wide range of applications, including:

    • HVAC environmental controls
    • Temperature monitoring systems inside buildings, equipment, or machinery
    • Process monitoring and control systems
    • Cold storage, food warehouses, telecommunications engine rooms, electric power engine rooms, etc.

    Additional Notes

    • The DS18B20 uses Dallas’ exclusive 1-Wire bus protocol to implement bus communication using one control signal.
    • The control line requires a weak pull-up resistor since all devices are linked to the bus via a 3-state or open-drain port.
    • The microprocessor (the master device) identifies and addresses devices on the bus using each device’s unique 64-bit code.

    In summary, the DS18B20 is a versatile and reliable digital thermometer that offers a unique 1-Wire interface, wide operating temperature range, power supply options, unique serial code, alarm function, and scratchpad memory. These features make it suitable for a wide range of temperature sensing and monitoring applications.
