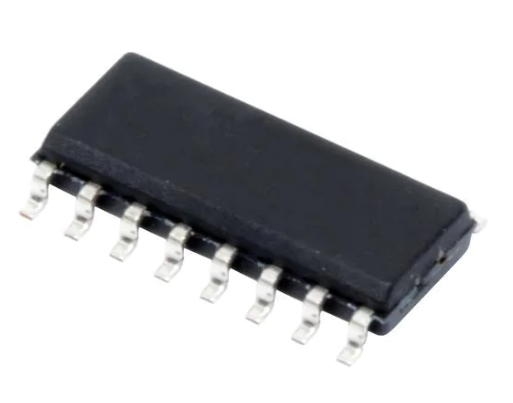

CD4051BM96
Manufacturer Part Number: CD4051BM96 | Manufacturer / Brand: TI |
Part of Description: Multiplexer Switch ICs 8-Channel Analog | Lead Free Status / RoHS Status: Lead free / RoHS Compliant |
Ship From: HK/Shen Zhen | Shipment Way: DHL/Fedex/TNT/UPS |
Datasheets: |
Product parameters
Manufacturer | TI |
RoHS | Details |
Mounting Style | SMD/SMT |
Package / Case | SOIC-Narrow-16 |
Number of Channels | 8 Channel |
Configuration | 1 x 8:1 |
Packaging | Reel |
Minimum Operating Temperature | – 40 C |
Maximum Operating Temperature | + 125 C |
Factory Pack Quantity | 100 |
Subcategory | Switch ICs |
Width | 3.91 mm |
Unit Weight | 0.009171 oz |
Get in touch with us now
The CD4051BM96 is an 8-channel analog multiplexer/demultiplexer from Texas Instruments, designed for switching multiple analog signals in various electronic systems. It allows one of eight inputs to be connected to a common output, or vice versa, through a combination of control signals. This device is ideal for applications requiring analog signal routing or switching in communication systems, data acquisition, and instrumentation.
Key Features:
- 8-Channel Multiplexer/Demultiplexer: Supports 8 separate channels, enabling the selection of one channel to be connected to the output or input based on control signals.
- Analog Signal Handling: Capable of handling analog signals with a wide input voltage range, making it suitable for various signal processing tasks.
- Low On-Resistance: Provides low on-resistance (typically 50Ω), which minimizes signal attenuation and ensures high signal integrity.
- Wide Power Supply Range: Operates over a broad supply voltage range from 3V to 15V, offering flexibility in different circuit designs.
- High-Speed Operation: Allows for fast switching times, which is beneficial for applications requiring quick signal routing.
- Low Power Consumption: Designed for low power operation, making it suitable for battery-powered and energy-efficient applications.
- Control Logic: Uses standard digital logic levels for control, allowing easy interfacing with digital systems and microcontrollers.
Typical Applications:
- Signal Routing: Used in systems where multiple analog signals need to be routed or switched, such as in communication equipment and data acquisition systems.
- Instrumentation: Applied in instrumentation systems for multiplexing sensor signals and selecting measurement channels.
- Audio Systems: Suitable for audio signal switching in mixers and audio processing equipment.
- Test Equipment: Utilized in test and measurement setups where switching between different analog signals is required.
The CD4051BM96 is recognized for its versatility, low on-resistance, and wide operating voltage range, making it a reliable choice for analog signal switching and multiplexing applications across various electronic systems.
