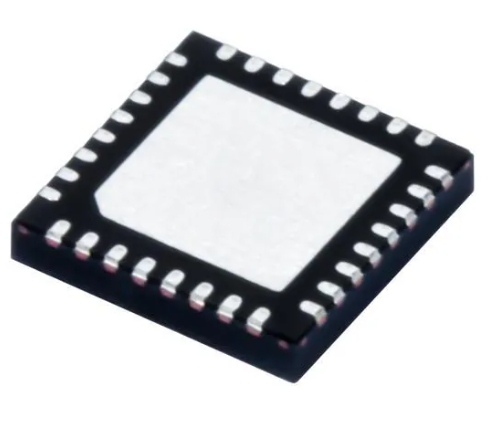

CC1120RHBR

Manufacturer Part Number: CC1120RHBR Manufacturer / Brand: TI
Part of Description: RF Transceiver RF Transceiver Hi Perf Lead Free Status / RoHS Status: table_img Lead free / RoHS Compliant
Ship From: HK/Shen Zhen Shipment Way: DHL/Fedex/TNT/UPS
Datasheets:

Product parameters

ManufacturerTI
RoHSDetails
Mounting StyleSMD/SMT
Package / CaseVQFN-32
Supply Current Receiving17 mA
Supply Current Transmitting45 mA
PackagingReel
Minimum Operating Temperature– 40 C
Maximum Operating Temperature+ 85 C
Factory Pack Quantity3000
SubcategoryWireless & RF Integrated Circuits
TechnologySi
Unit Weight0.002547 oz

Get in touch with us now

    Please submit your BOM List or Input the part online

    Please complete all required fields with your contact information.Click "SUBMIT REQUEST" we will contact you shortly by email. Or Email us: Sales001@easyiee.com

    First name *

    Last name *

    Company Email *

    Phone number *

    Company name *

    Country *

    Upload file: We support .xls, .xlsx and .csv files under 4MB

    CHOOSE FILE

    Please submit your BOM List or Input the part online

    SUBMIT INFORMATION

    The CC1120RHBR is a high-performance, low-power RF transceiver from Texas Instruments designed for wireless communication in the sub-1 GHz frequency range. It is optimized for use in a variety of applications including industrial, scientific, and medical (ISM) bands, providing reliable and efficient data transmission with low power consumption.

    Key Features:

    • Frequency Range: Operates in the sub-1 GHz frequency bands, covering 169 MHz, 433 MHz, 868 MHz, and 915 MHz, making it suitable for a wide range of wireless communication standards.
    • Low Power Consumption: Designed for low power operation with a current consumption of as low as 12.5 µA in sleep mode and 19.8 mA in RX mode, enhancing battery life in portable devices.
    • High Sensitivity: Features high receiver sensitivity, down to -120 dBm, ensuring reliable communication over long distances and in challenging environments.
    • Programmable Output Power: Offers adjustable output power levels up to +14 dBm, allowing optimization of communication range and power consumption.
    • High Data Rates: Supports data rates up to 500 kbps, suitable for high-speed data transmission.
    • Integrated RF Front-End: Includes integrated RF front-end components, simplifying design and reducing the need for external components.
    • Low Phase Noise: Provides low phase noise performance, contributing to better signal quality and reduced interference.
    • Flexible Modulation Schemes: Supports a range of modulation schemes including 2-FSK, 4-FSK, GFSK, and OOK, providing flexibility for different communication protocols.
    • Advanced Features: Includes features such as automatic frequency compensation, packet handling, and programmable data rate settings.

    Typical Applications:

    • Wireless Sensor Networks: Used in industrial and environmental sensor networks for monitoring and data collection.
    • Remote Controls: Applied in remote control systems for various consumer and industrial devices.
    • Automotive Applications: Suitable for automotive wireless communication systems, such as tire pressure monitoring systems (TPMS) and keyless entry.
    • Home Automation: Ideal for smart home systems, including lighting controls, security systems, and home appliances.
    • Health Monitoring: Used in medical and health monitoring devices for wireless data transmission.

    The CC1120RHBR is recognized for its high performance, low power consumption, and flexibility, making it a reliable choice for a wide range of wireless communication applications.
