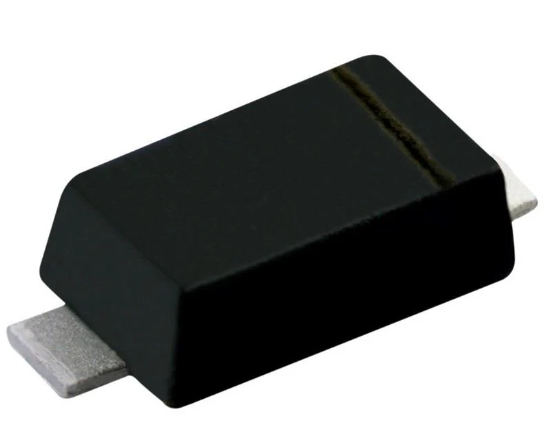

BZT52C5V1-7-F

Manufacturer Part Number: BZT52C5V1-7-F Manufacturer / Brand: Diodes
Part of Description: Zener Diodes 500mW 5.1V Zener Lead Free Status / RoHS Status: Digital Signal Processors & Controllers - DSP, DSC 16 BIT HYBRID CNTRLR
Ship From: HK/Shen Zhen Shipment Way: DHL/Fedex/TNT/UPS
Datasheets:

Product parameters

ManufacturerDiodes
DetailsRoHS
Mounting StyleSMD/SMT
Package / CaseSOD-123-2
Minimum Operating Temperature– 65 C
Transistor Polarity+ 150 C
ConfigurationSingle
PackagingReel
SubcategoryDiodes & Rectifiers
Product TypeZener Diodes
Factory Pack Quantity3000
Zener Current2 uA
Unit Weight0.000353 oz

Get in touch with us now

    Please submit your BOM List or Input the part online

    Please complete all required fields with your contact information.Click "SUBMIT REQUEST" we will contact you shortly by email. Or Email us: Sales001@easyiee.com

    First name *

    Last name *

    Company Email *

    Phone number *

    Company name *

    Country *

    Upload file: We support .xls, .xlsx and .csv files under 4MB

    CHOOSE FILE

    Please submit your BOM List or Input the part online

    SUBMIT INFORMATION

    The BZT52C5V1-7-F is a surface-mount Zener diode manufactured by Diodes Incorporated, designed for voltage regulation and protection in various electronic circuits. This device is ideal for providing a stable 5.1V regulated voltage in low-power applications.

    Description:

    • Type: Zener Diode
    • Manufacturer: Diodes Incorporated
    • Package: SOD-123 (Surface-Mount)

    Key Features:

    • Zener Voltage (V_z): 5.1V (Nominal)
    • Power Dissipation: 500 mW
    • Tolerance: ±5%
    • Zener Impedance (Z_z): 17 Ω at 5.1V
    • Reverse Leakage Current (I_R): 2 μA maximum at 1V
    • Low Leakage: Ensures minimal power loss during operation
    • Fast Response: Protects sensitive electronics from voltage transients
    • Temperature Coefficient: Provides stable performance over a wide temperature range
    • Compact Package: SOD-123 package is ideal for space-constrained PCBs

    Applications:

    • Voltage Regulation: Provides a stable 5.1V reference voltage for various circuits
    • Protection Circuits: Used in clamping circuits to protect components from voltage spikes
    • Power Supplies: Stabilizes and limits voltage in low-power systems
    • Consumer Electronics: Found in televisions, audio systems, and portable devices
    • Telecommunications: Protects communication circuits from voltage surges

    Benefits:

    • Reliable Voltage Regulation: Delivers consistent and stable output, ensuring reliable operation in sensitive circuits.
    • Compact SMD Package: Small SOD-123 package enables use in space-constrained designs.
    • Low Reverse Leakage: Reduces energy loss and improves overall efficiency.
    • Wide Range of Applications: Suitable for consumer electronics, power supplies, and industrial equipment.

    Package Dimensions:

    • SOD-123: A surface-mount package designed for easy PCB integration, measuring approximately 1.6mm × 2.7mm.

    Reference Documents:

    For detailed electrical characteristics and application notes, refer to the BZT52C5V1-7-F datasheet available on Diodes Incorporated’s official website.
