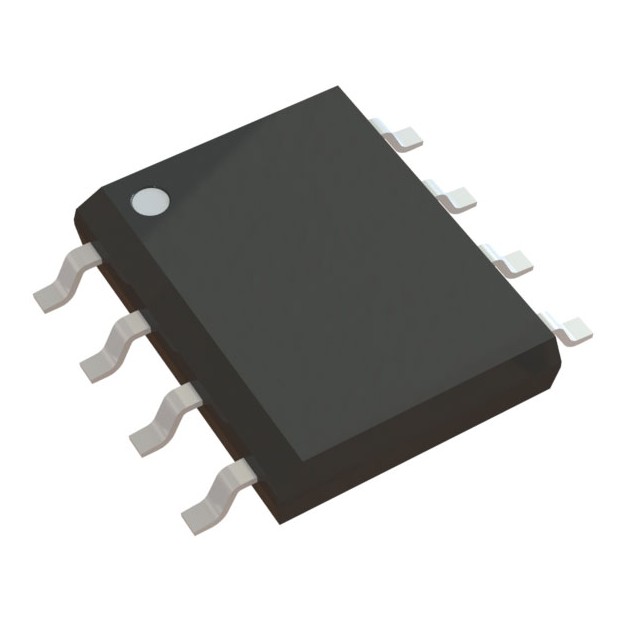

BTS5045-1EJA

Manufacturer Part Number: BTS5045-1EJA Manufacturer / Brand: Infineon Technologies
Part of Description: SoC FPGA BTS5045-1EJA Lead Free Status / RoHS Status: table_img Lead free / RoHS Compliant
Ship From: HK/Shen Zhen Shipment Way: DHL/Fedex/TNT/UPS
Datasheets:
BTS5045-1EJA.pdf

Product parameters

ManufacturerInfineon
RoHSDetails
Product CategoryPower Distribution
TypeHigh Side
Package / CaseSOIC-8
Mounting StyleSMD/SMT
SeriesPROFET 12V
PackagingReel
BrandInfineon Technologies
Maximum Operating Temperature-40C
Minimum Operating Temperature+150 C
Pd – Power Dissipation1.6W
Factory Pack Quantity2500
Moisture SensitiveYes
Supply Voltage – Max28V
Supply Voltage – Min5V
Unit Weight0.009877 oz

Get in touch with us now

    Please submit your BOM List or Input the part online

    Please complete all required fields with your contact information.Click "SUBMIT REQUEST" we will contact you shortly by email. Or Email us: [email protected]

    First name *

    Last name *

    Company Email *

    Phone number *

    Company name *

    Country *

    Upload file: We support .xls, .xlsx and .csv files under 4MB

    CHOOSE FILE

    Please submit your BOM List or Input the part online

    SUBMIT INFORMATION

    Related Products

    PQ25792RQMT

    • Manufacturer / Brand: Texas Instruments
    • Ship From: HK/Shen Zhen
    • Description: New original
    • Data sheet:

    Quote:

    RFQ

    BQ2028YZGT

    Quote:

    RFQ

    BQ2026LPR

    Quote:

    RFQ

    BQ25790YBGR

    • Manufacturer / Brand: Texas Instruments
    • Ship From: HK/Shen Zhen
    • Description: New original
    • Data sheet:

    Quote:

    RFQ

    BQ25731RSNT

    • Manufacturer / Brand: Texas Instruments
    • Ship From: HK/Shen Zhen
    • Description: New original
    • Data sheet:

    Quote:

    RFQ

    BQ24773RUYR

    • Manufacturer / Brand: Texas Instruments
    • Ship From: HK/Shen Zhen
    • Description: New original
    • Data sheet:

    Quote:

    RFQ

    BQ25887RGER

    Quote:

    RFQ

    BQ2022ALPR

    Quote:

    RFQ

    What is BTS5045-1EJA?

    The BTS5045-1EJA is a 45 mΩ single channel Smart High-Side Power Switch, embedded in a PG-DSO-8-43 EP,Exposed Pad package, providing protective functions and diagnosis. The power transistor

    is built by an N-channelvertical power MOSFET with charge pump.



    The device is integrated in Smart6 technology. It is specially designedto drive lamps up to 1 * P27W/P21W, as well as LEDs in the harsh automotive environment.

    BTS5045-1EJA Applications：

    Application

    • Suitable for resistive, inductive and capacitive loads

    • Replaces electromechanical relays, fuses and discrete circuits

    • Most suitable for loads with high inrush current, such as lamps



    Basic Features

    • One channel device

    • Very low stand-by current

    • 3.3 V and 5 V compatible logic inputs

    • Electrostatic discharge protection (ESD)

    • Optimized electromagnetic compatibility

    • Logic ground independent from load ground

    • Very low power DMOS leakage current in OFF state

    • Green product (RoHS compliant)

    • AEC qualified
