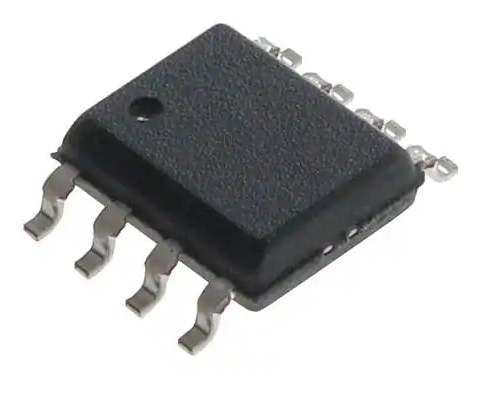

ATTINY13A-SSU

Manufacturer Part Number: ATTINY13A-SSU Manufacturer / Brand: Microchip
Part of Description: 8-bit Microcontrollers - MCU 1KB In-system Flash 20MHz 1.8V-5.5V Lead Free Status / RoHS Status: 16-bit Microcontrollers - MCU MCU 3/5V 56K Pb-free 64-QFP
Ship From: HK/Shen Zhen Shipment Way: DHL/Fedex/TNT/UPS
Datasheets:

Product parameters

ManufacturerMicrochip
DetailsRoHS
Mounting StyleSMD/SMT
Package / CaseSOIC-8
Minimum Operating Temperature– 40 C
Maximum Operating Temperature+125 C
PackagingTube
Moisture SensitiveYes
Processor SeriestinyAVR
Factory Pack Quantity100
SubcategoryMicrocontrollers – MCU
TradenameAVR
Width4.4 mm
Unit Weight0.019048 oz

Get in touch with us now

    Please submit your BOM List or Input the part online

    Please complete all required fields with your contact information.Click "SUBMIT REQUEST" we will contact you shortly by email. Or Email us: Sales001@easyiee.com

    First name *

    Last name *

    Company Email *

    Phone number *

    Company name *

    Country *

    Upload file: We support .xls, .xlsx and .csv files under 4MB

    CHOOSE FILE

    Please submit your BOM List or Input the part online

    SUBMIT INFORMATION

    The ATTINY13A-SSU is a low-power, high-performance 8-bit microcontroller from Atmel, based on the AVR enhanced RISC architecture. It operates at a maximum frequency of 20 MHz and features 1 KB of in-system programmable Flash memory, as well as 64 bytes of SRAM. With its 8-pin SOIC package, the ATTINY13A-SSU is designed for space-constrained applications while maintaining a high level of functionality.

    The microcontroller incorporates a rich instruction set and 32 general-purpose working registers, all directly connected to the arithmetic logic unit (ALU). This allows for efficient code execution and high throughput, with up to 1 MIPS per MHz. Additionally, the ATTINY13A-SSU includes advanced power-saving features such as a programmable watchdog timer, on-chip analog comparator, and enhanced power-on reset circuit.

    The ATTINY13A-SSU also offers a range of peripherals to support various application requirements. These include one 8-bit timer/counter with prescaler and two PWM channels, which can be used for generating precise timing and control signals. The microcontroller also supports various communication interfaces, such as asynchronous serial communication, making it suitable for a wide range of embedded systems and applications.

    With its low power consumption, high endurance non-volatile memory segments, and compact package size, the ATTINY13A-SSU is an ideal choice for developers looking to create sophisticated and reliable microcontroller-based systems for automotive, industrial, and consumer electronics applications.
