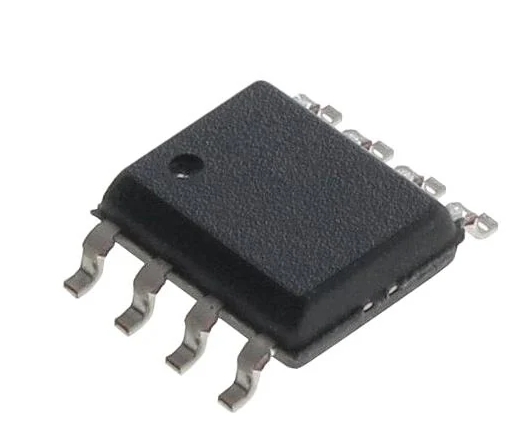

AT24C512C-SSHM-T

The AT24C512C-SSHM-T is a 512-kilobit (64K x 8) EEPROM (Electrically Erasable Programmable Read-Only Memory) from Microchip Technology, designed for applications requiring non-volatile data storage with high endurance and reliability. This device is ideal for storing configuration settings, calibration data, and other critical information that must be retained even when the power is off.

Key Features:

• 512-Kbit Capacity: Provides 64K x 8 bits of memory, offering ample storage for various data needs.
• I²C Interface: Utilizes a 2-wire I²C (Inter-Integrated Circuit) interface for communication, which simplifies integration into systems and supports multi-device configurations.
• Wide Voltage Range: Operates over a broad voltage range of 1.7V to 5.5V, ensuring compatibility with different system voltage levels.
• Fast Write Speed: Features a fast write cycle time of up to 5 ms, allowing for quick updates and data storage.
• Endurance and Data Retention:
  • Endurance: Capable of withstanding up to 1 million write cycles per memory cell.
  • Data Retention: Ensures data retention for up to 100 years, providing long-term reliability.
• Small Package: Available in a compact 8-pin TSSOP (Thin Shrink Small Outline Package), making it suitable for space-constrained applications.
• Write Protection: Supports hardware write protection to safeguard critical data from inadvertent writes or corruption.

Typical Applications:

• Consumer Electronics: Used in devices such as remote controls, cameras, and portable media players for storing settings and calibration data.
• Industrial Equipment: Ideal for industrial controllers and sensors where non-volatile storage of configuration parameters and operational data is required.
• Automotive Systems: Applied in automotive electronics for storing configuration and diagnostic information in on-board systems.
• Embedded Systems: Utilized in embedded systems for storing firmware, configuration settings, and user data.

The AT24C512C-SSHM-T is valued for its large storage capacity, reliable data retention, and flexible interfacing options, making it a versatile choice for various applications requiring durable and efficient non-volatile memory.
