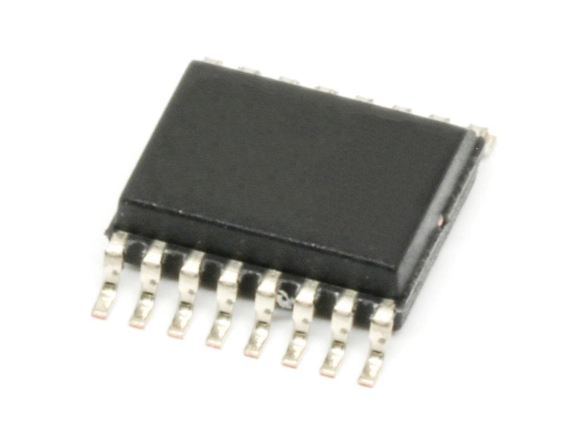

ADG708CRUZ-REEL7

Manufacturer Part Number: ADG708CRUZ-REEL7 Manufacturer / Brand: ADI
Part of Description: Multiplexer Switch ICs 8-CHANNEL MUX Lead Free Status / RoHS Status: 16-bit Microcontrollers - MCU MCU 3/5V 56K Pb-free 64-QFP
Ship From: HK/Shen Zhen Shipment Way: DHL/Fedex/TNT/UPS
Datasheets:

Product parameters

ManufacturerADI
DetailsRoHS
Mounting StyleSMD/SMT
Package / CaseTSSOP-16
Minimum Operating Temperature– 40 C
Maximum Operating Temperature+125 C
PackagingReel
Moisture SensitiveYes
Product TypeMultiplexer Switch ICs
Factory Pack Quantity1000
SubcategorySwitch ICs
Off Isolation – Typ80 dB
Width4.4 mm
Unit Weight0.007055 oz

Get in touch with us now

    Please submit your BOM List or Input the part online

    Please complete all required fields with your contact information.Click "SUBMIT REQUEST" we will contact you shortly by email. Or Email us: Sales001@easyiee.com

    First name *

    Last name *

    Company Email *

    Phone number *

    Company name *

    Country *

    Upload file: We support .xls, .xlsx and .csv files under 4MB

    CHOOSE FILE

    Please submit your BOM List or Input the part online

    SUBMIT INFORMATION

    The ADG708CRUZ-REEL7 is a high-performance, low-voltage CMOS analog multiplexer produced by Analog Devices Inc. (ADI). Packaged in a tape and reel format, it is designed for automated assembly processes and offers a range of features that make it suitable for a variety of analog switching applications.

    Key Features and Specifications:

    1. CMOS Technology:
      • The ADG708CRUZ-REEL7 is based on CMOS technology, which provides low power consumption and high switching speed.
    2. Low-Voltage Operation:
      • The device operates over a wide supply voltage range of 1.8 V to 5.5 V, making it ideal for battery-powered and portable instruments.
    3. 8-Channel Multiplexer:
      • The ADG708CRUZ-REEL7 functions as an 8-to-1 multiplexer, allowing one of eight inputs to be switched to a common output. This is controlled by three binary address lines (A0, A1, A2).
    4. Low On-Resistance:
      • The device features a low on-resistance of typically 3 Ω, which minimizes signal loss and ensures high signal integrity.
    5. Break-Before-Make Switching Action:
      • The ADG708CRUZ-REEL7 exhibits break-before-make switching action, preventing momentary shorting when switching channels. This ensures reliable operation and prevents damage to connected circuitry.
    6. Low Power Consumption:
      • With a power consumption of less than 0.01 μW, the ADG708CRUZ-REEL7 is highly energy-efficient and suitable for applications where power conservation is critical.
    7. TTL/CMOS-Compatible Inputs:
      • The device has TTL/CMOS-compatible inputs, making it easy to interface with a wide range of digital circuits and microcontrollers.
    8. Small Package Size:
      • The ADG708CRUZ-REEL7 is available in a small 16-lead TSSOP package, which is suitable for high-density circuit board layouts and applications requiring small form factors.
    9. Qualified for Automotive Applications:
      • The device has been qualified for automotive applications, ensuring reliability and performance in harsh environments.
    10. Single/Dual-Supply Operation:
      • The ADG708CRUZ-REEL7 can operate with either a single supply (3 V or 5 V) or a dual supply (±2.5 V). This flexibility makes it suitable for a variety of power supply configurations.

    Applications:

    The ADG708CRUZ-REEL7 is widely used in data acquisition systems, communication systems, relay replacement, audio and video switching, and battery-powered systems. Its high performance, low voltage operation, and small package size make it an excellent choice for applications requiring precise analog switching.

    In conclusion, the ADG708CRUZ-REEL7 is a high-performance, low-voltage CMOS analog multiplexer that offers a range of features that make it suitable for a variety of analog switching applications. Its low on-resistance, break-before-make switching action, and low power consumption make it a versatile and reliable solution for many demanding applications.
