ADG704BRMZ-REEL7

The ADG704BRMZ-REEL7 is a CMOS analog multiplexer comprising four single channels. Fabricated using advanced sub-micron process technology, this multiplexer offers several key features and benefits, making it suitable for a variety of electronic applications.

Key Features:

1. Low Power Consumption: The ADG704BRMZ-REEL7 is designed for low power consumption, making it ideal for battery-powered instruments and new-generation DAC and ADC analog devices.
2. High Switching Speed: With a fast switch-on time (tON) of 20 ns and a switch-off time (tOFF) of 13 ns, this multiplexer is capable of handling high-speed signal switching requirements.
3. Low On-Resistance: The multiplexer exhibits a low on-resistance (RON) of 2.5 ohms (typical) at VS=0V to VDD, ensuring minimal signal degradation during switching.
4. Flat RON Curve: The RON curve is very flat across the entire analog signal range, ensuring excellent linearity and low distortion when switching audio signals.
5. High Bandwidth: With a -3 dB bandwidth greater than 200 MHz, the ADG704BRMZ-REEL7 can handle high-frequency signals without significant attenuation.
6. Rail-to-Rail Operation: This multiplexer supports rail-to-rail operation, providing a wide input and output voltage range.
7. TTL/CMOS Compatibility: The ADG704BRMZ-REEL7 is compatible with both TTL and CMOS logic levels, making it easy to interface with a wide range of digital circuits.

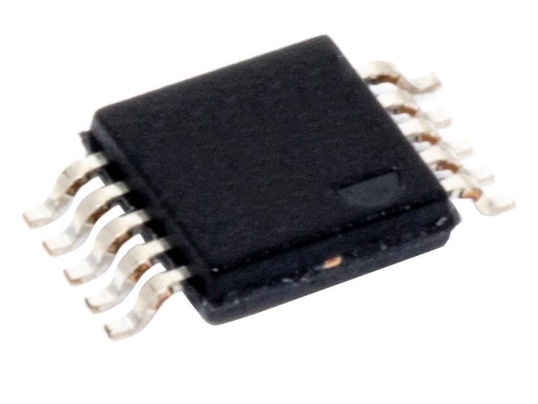

8. Compact Package: Packaged in a 10-lead MSOP, the ADG704BRMZ-REEL7 offers a compact footprint suitable for space-constrained applications.
9. Wide Power Supply Range: The device operates from a single power supply ranging from +1.8 V to +5.5 V, providing flexibility in system design.

Functional Description:

The ADG704BRMZ-REEL7 is a 4-to-1 multiplexer that routes one of four analog input signals to a common output (D) based on the state of three binary address lines (A0, A1, and EN). When the EN pin is logic “0”, the device is disabled. Each switch in the multiplexer exhibits good bidirectional conduction when turned on.

Applications:

The ADG704BRMZ-REEL7 is well-suited for a variety of applications, including:

• Battery-powered systems
• Communication systems
• Sample-and-hold circuits
• Audio signal routing
• Data acquisition systems
• Video signal switching

Summary:

The ADG704BRMZ-REEL7 is a high-performance, low-power CMOS analog multiplexer that offers fast switching speeds, low on-resistance, and a wide power supply range. Its compact package size and TTL/CMOS compatibility make it an ideal choice for a wide range of electronic applications, including communication systems, audio signal routing, and battery-powered instruments.
