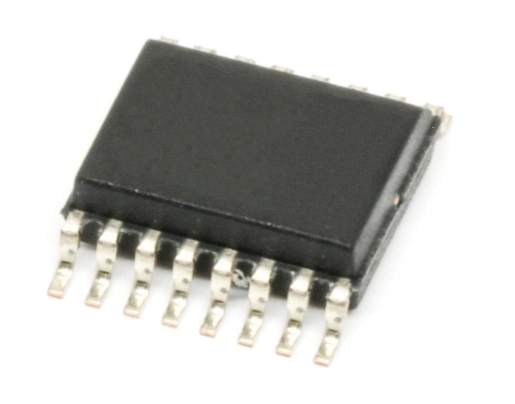

ADG1208YRUZ-REEL7
Manufacturer Part Number: ADG1208YRUZ-REEL7 | Manufacturer / Brand: ADI |
Part of Description: Multiplexer Switch ICs Low Capacitance, 8-Channel, 15 V/+12 V iCMOS Multiplexer | Lead Free Status / RoHS Status: 16-bit Microcontrollers - MCU MCU 3/5V 56K Pb-free 64-QFP |
Ship From: HK/Shen Zhen | Shipment Way: DHL/Fedex/TNT/UPS |
Datasheets: |
Product parameters
Manufacturer | ADI |
Details | RoHS |
Mounting Style | SMD/SMT |
Package / Case | TSSOP-16 |
Minimum Operating Temperature | – 40 C |
Maximum Operating Temperature | +125 C |
Packaging | Reel |
Moisture Sensitive | Yes |
Product Type | Multiplexer Switch ICs |
Factory Pack Quantity | 1000 |
Subcategory | Switch ICs |
Off Isolation – Typ | -85 dB |
Pd – Power Dissipation | 4.7 mW |
Unit Weight | 0.006102 oz |
Get in touch with us now
The ADG1419BRMZ is a high-performance, single-chip iCMOS® device containing a single-pole/double-throw (SPDT) switch. It offers excellent electrical performance with a maximum on-resistance of 2.1 Ω and a flatness of 0.5 Ω (maximum) at 25°C. The device is fully specified at ±15 V, +12 V, and ±5 V supply voltages and can handle continuous currents up to 390 mA.
The ADG1419BRMZ features an EN input on the LFCSP package, which can be used to enable or disable the device. When disabled, all channels are switched off, providing additional power-saving benefits. The device also offers rail-to-rail operation and is compatible with 3 V logic inputs.
With its compact 8-lead MSOP and 8-lead 3 mm × 2 mm LFCSP packages, the ADG1419BRMZ is well-suited for integration into high-density circuit boards and systems. Its low power consumption and high switching speed make it an ideal choice for a wide range of applications, including automatic test equipment, data acquisition systems, battery-powered systems, relay replacement solutions, sampling and holding systems, audio signal routing, video signal routing, and communications systems.
Overall, the ADG1419BRMZ combines high performance, compact packaging, and low power consumption to meet the demands of modern electronic applications. Its versatility and reliability make it a valuable component in various systems and devices.
