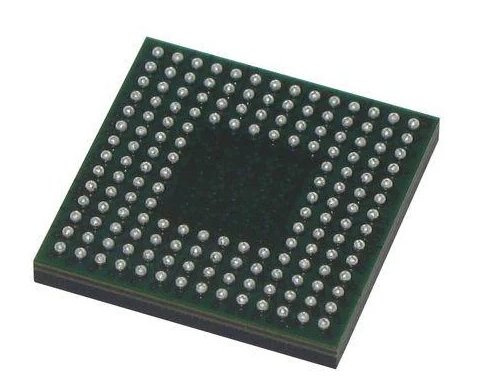

AD9119BBCZ

Manufacturer Part Number: AD9119BBCZ Manufacturer / Brand: ADI
Part of Description: Digital to Analog Converters - DAC IC, 11b 5.6 GSPS DAC (AdjRate: 2.8GSPS) Lead Free Status / RoHS Status: 16-bit Microcontrollers - MCU MCU 3/5V 56K Pb-free 64-QFP
Ship From: HK/Shen Zhen Shipment Way: DHL/Fedex/TNT/UPS
Datasheets:

Product parameters

ManufacturerADI
DetailsRoHS
Mounting StyleSMD/SMT
Package / CaseBGA-160
Minimum Operating Temperature– 40 C
Maximum Operating Temperature+85 C
PackagingTray
Moisture SensitiveYes
Product TypeDACs – Digital to Analog Converters
Factory Pack Quantity189
SubcategoryData Converter ICs
Supply Voltage – Max1.8 V
Supply Voltage – Min1.8 V
Unit Weight0.018053 oz

Get in touch with us now

    Please submit your BOM List or Input the part online

    Please complete all required fields with your contact information.Click "SUBMIT REQUEST" we will contact you shortly by email. Or Email us: Sales001@easyiee.com

    First name *

    Last name *

    Company Email *

    Phone number *

    Company name *

    Country *

    Upload file: We support .xls, .xlsx and .csv files under 4MB

    CHOOSE FILE

    Please submit your BOM List or Input the part online

    SUBMIT INFORMATION

    The AD9119BBCZ is a high-performance 11-bit RF digital-to-analog converter (DAC) designed for demanding applications requiring high speed, high resolution, and low power consumption. Manufactured by Analog Devices Inc., this DAC offers exceptional performance specifications and features that make it suitable for a wide range of applications.

    Key Features and Specifications:

    1. High Resolution and Sampling Rate:
      • The AD9119BBCZ features an 11-bit resolution, capable of handling complex signals with high precision.
      • It supports a maximum data rate of up to 2.85 GSPS (giga-samples per second), enabling high-speed signal processing.
    2. High Dynamic Range and Bandwidth:
      • The DAC offers a high dynamic range, which is essential for maintaining signal integrity and reducing noise in RF applications.
      • It supports a bandwidth of up to 4.2 GHz, allowing it to handle high-frequency signals with ease.
    3. Mix-Mode and Interpolation Capabilities:
      • The AD9119BBCZ can be configured in mix-mode, which doubles the effective DAC update rate to 5.7 GSPS when using double-edge clocking.
      • It also features optional 2x interpolation filters that can further simplify post-reconstruction filtering by doubling the DAC update rate.
    4. Interface and Power Supply:
      • The DAC features a dual-port source-synchronous LVDS interface, which simplifies data interfacing with host FPGAs/ASICs.
      • It operates from a +1.8 V and -1.5 V power supply, providing a low-power solution for RF applications.
    5. Package and Integration:
      • The AD9119BBCZ is packaged in a 160-pin chip-scale ball grid array (BGA), which allows for dense integration and small form factor designs.
      • It includes features such as differential frame/parity bits for interface integrity monitoring and an on-chip delay-locked loop (DLL) for optimizing timing between different clock domains.
    6. Applications:
      • The AD9119BBCZ is suitable for a wide range of applications, including broadband communication systems, cable modem termination systems (CMTS)/video-on-demand (VOD), wireless infrastructure such as W-CDMA and LTE, instrumentation, automatic test equipment (ATE), radar, and jammer systems.

    Benefits:

    • High Precision: The 11-bit resolution ensures high precision in signal conversion, which is critical for maintaining signal integrity in complex RF applications.
    • High Speed: The high sampling rate allows for the processing of high-speed signals, enabling advanced signal processing techniques and higher data throughput.
    • Low Power Consumption: The low power supply requirements and efficient power management features make the AD9119BBCZ suitable for power-sensitive applications.
    • Versatility: The mix-mode and interpolation capabilities, combined with the high bandwidth and dynamic range, make the DAC versatile for a wide range of applications.

    In summary, the AD9119BBCZ is a high-performance 11-bit RF DAC that offers exceptional speed, resolution, and power efficiency. Its advanced features and capabilities make it suitable for a wide range of demanding RF applications, providing a robust and versatile solution for signal conversion and processing.
