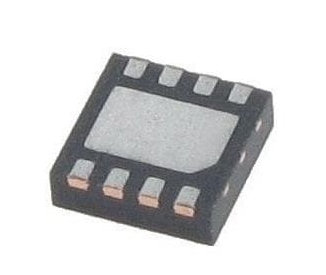

AD8137YCPZ-REEL7

Manufacturer Part Number: AD8137YCPZ-REEL7 Manufacturer / Brand: ADI
Part of Description: Differential Amplifiers Low Power/Cost Diff.10-12 Bit ADC Driver Lead Free Status / RoHS Status: Digital Signal Processors & Controllers - DSP, DSC 16 BIT HYBRID CNTRLR
Ship From: HK/Shen Zhen Shipment Way: DHL/Fedex/TNT/UPS
Datasheets:

Product parameters

ManufacturerADI
DetailsRoHS
Mounting StyleSMD/SMT
Package / CaseLFCSP-8
Minimum Operating Temperature– 40 C
Transistor Polarity+125 C
PackagingReel
Moisture SensitiveYes
Factory Pack Quantity1500

Get in touch with us now

    Please submit your BOM List or Input the part online

    Please complete all required fields with your contact information.Click "SUBMIT REQUEST" we will contact you shortly by email. Or Email us: Sales001@easyiee.com

    First name *

    Last name *

    Company Email *

    Phone number *

    Company name *

    Country *

    Upload file: We support .xls, .xlsx and .csv files under 4MB

    CHOOSE FILE

    Please submit your BOM List or Input the part online

    SUBMIT INFORMATION

    The AD8137YCPZ-REEL7 is a low-cost, low-power differential ADC (Analog-to-Digital Converter) driver from Analog Devices Inc. (ADI). This device is specifically designed to drive ADCs in sensitive systems, offering both high performance and cost-effectiveness.

    The AD8137YCPZ-REEL7 features a differential amplifier configuration with a high-speed capability of up to 110 MHz and a power supply rejection ratio (PSRR) of 91 dB. It operates over a wide temperature range of -40°C to +125°C, making it suitable for a variety of industrial and automotive applications.

    The internal common-mode feedback architecture of the AD8137YCPZ-REEL7 allows the output common-mode voltage to be controlled by a voltage applied to one of its pins. This feature, along with the internal feedback loop, provides balanced outputs and suppression of even-order harmonic distortion.

    The AD8137YCPZ-REEL7 offers external adjustable gain and a wide power supply voltage range of 2.7 V to 12 V. It is packaged in a small 8-pin SOIC or 3 mm × 3 mm LFCSP package, making it ideal for space-constrained applications.

    Additionally, the AD8137YCPZ-REEL7 features a low power consumption mode, known as the power-down mode, which reduces the static power current to 450 μA at 5 V. This feature is beneficial for critical low-power applications.

    Overall, the AD8137YCPZ-REEL7 is an excellent choice for ADC drivers in sensitive systems, offering high performance, low power consumption, and cost-effectiveness in a small package size. Its wide operating temperature range and adjustable gain make it suitable for a variety of industrial, automotive, and portable applications.
