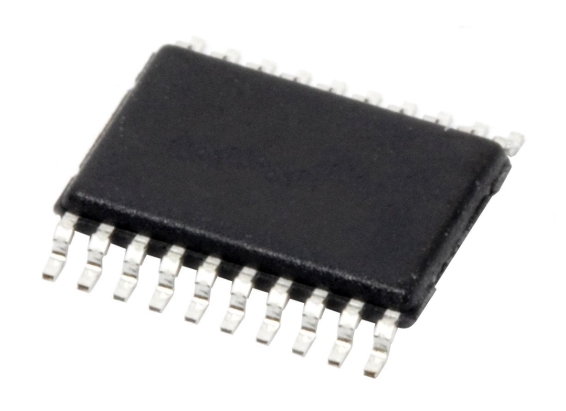

AD7820LRZ

Manufacturer Part Number: AD7820LRZ Manufacturer / Brand: ADI
Part of Description: Analog to Digital Converters - ADC 8-BIT CMOS A/D CONVERTER Lead Free Status / RoHS Status: 16-bit Microcontrollers - MCU MCU 3/5V 56K Pb-free 64-QFP
Ship From: HK/Shen Zhen Shipment Way: DHL/Fedex/TNT/UPS
Datasheets:

Product parameters

ManufacturerADI
DetailsRoHS
Mounting StyleSMD/SMT
Package / CaseSOIC-20
Minimum Operating Temperature– 40 C
Maximum Operating Temperature+85 C
PackagingTube
Moisture SensitiveYes
Product TypeADCs – Analog to Digital Converters
Factory Pack Quantity37
SubcategoryData Converter ICs
TypeS/H ADC
Width7.6 mm
Unit Weight0.028254 oz

Get in touch with us now

    Please submit your BOM List or Input the part online

    Please complete all required fields with your contact information.Click "SUBMIT REQUEST" we will contact you shortly by email. Or Email us: Sales001@easyiee.com

    First name *

    Last name *

    Company Email *

    Phone number *

    Company name *

    Country *

    Upload file: We support .xls, .xlsx and .csv files under 4MB

    CHOOSE FILE

    Please submit your BOM List or Input the part online

    SUBMIT INFORMATION

    The AD7820LRZ is an 8-bit CMOS analog-to-digital converter (ADC) from Analog Devices Inc. (ADI). This device offers high performance and reliability, making it suitable for a wide range of applications.

    Key Specifications and Features:

    1. Resolution:
      • The AD7820LRZ provides an 8-bit resolution, allowing for the conversion of analog signals into digital values with 256 possible levels.
    2. Conversion Rate:
      • With a sampling rate of 500 kS/s (kilosamples per second), the ADC can quickly convert analog signals into digital data.
    3. Single-Ended Input:
      • The device accepts a single-ended analog input, simplifying the interface with analog signals.
    4. Power Supply:
      • The AD7820LRZ operates from a single +5V power supply, with a tolerance range of 4.75V to 5.25V.
    5. Interface:
      • The ADC features a parallel interface for easy integration with microprocessors and other digital systems.
    6. Package:
      • The AD7820LRZ is packaged in a SOIC-20 (small outline integrated circuit) package, which is suitable for surface-mount technology (SMT) assembly.
    7. Operating Temperature Range:
      • The device is specified to operate over a temperature range of -40°C to +85°C, ensuring reliability in a variety of environmental conditions.
    8. Power Consumption:
      • With a power consumption of 40 mW, the AD7820LRZ is efficient and suitable for use in power-sensitive applications.
    9. External Reference:
      • The ADC uses an external reference voltage for accurate conversion of analog signals to digital values.

    Applications:

    The AD7820LRZ is suitable for a variety of applications, including:

    • Data acquisition systems
    • Instrumentation and test equipment
    • Process control systems
    • Any application requiring high-speed, high-resolution analog-to-digital conversion

    Summary:

    The AD7820LRZ is an 8-bit CMOS ADC that offers high performance, reliability, and ease of integration. With its fast conversion rate, single-ended input, and parallel interface, the device is suitable for a wide range of applications that require precise analog-to-digital conversion. Its compact SOIC-20 package and low power consumption make it an ideal choice for use in space-constrained and power-sensitive systems.
