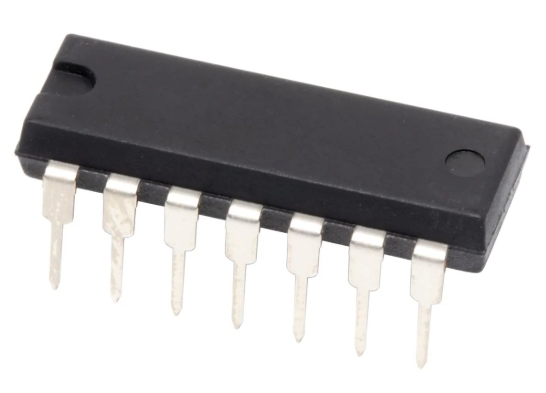

AD713JNZ

Manufacturer Part Number: AD713JNZ Manufacturer / Brand: ADI
Part of Description: Precision Amplifiers HIGH SPEED QUAD BIFET AMP Lead Free Status / RoHS Status: 16-bit Microcontrollers - MCU MCU 3/5V 56K Pb-free 64-QFP
Ship From: HK/Shen Zhen Shipment Way: DHL/Fedex/TNT/UPS
Datasheets:

Product parameters

ManufacturerADI
DetailsRoHS
Mounting StyleSMD/SMT
Package / CasePDIP-14
Minimum Operating Temperature– 40 C
Maximum Operating Temperature+85 C
PackagingTube
Moisture SensitiveYes
Product TypePrecision Amplifiers
Factory Pack Quantity25
SubcategoryAmplifier ICs
Voltage Gain dB112.04 dB
Width6.35 mm
Unit Weight0.057144 oz

Get in touch with us now

    Please submit your BOM List or Input the part online

    Please complete all required fields with your contact information.Click "SUBMIT REQUEST" we will contact you shortly by email. Or Email us: Sales001@easyiee.com

    First name *

    Last name *

    Company Email *

    Phone number *

    Company name *

    Country *

    Upload file: We support .xls, .xlsx and .csv files under 4MB

    CHOOSE FILE

    Please submit your BOM List or Input the part online

    SUBMIT INFORMATION

    The AD713JNZ is a precision quad operational amplifier from Analog Devices Inc. (ADI). It consists of four AD711 BiFET operational amplifiers integrated into a single monolithic die, providing excellent DC characteristics, rapid settling times, high slew rates, and ample bandwidths.

    The AD713JNZ offers a unity gain bandwidth of 4 MHz and a slew rate of 20 V/μs, making it suitable for high-speed applications. It also boasts a low total harmonic distortion (THD) level of 0.0003%, making it an ideal choice for demanding audio applications. The amplifier has a maximum input offset voltage of 2000 μV and a typical drift of 8 μV/°C, ensuring high precision and stability over a wide temperature range.

    The AD713JNZ is internally compensated for stable operation at unity gain and is available in a 14-lead plastic dual-in-line package (PDIP). It operates with a dual supply voltage of ±15V (with a maximum supply voltage of ±18V and a minimum supply voltage of ±4.5V), making it versatile for a range of applications.

    The AD713JNZ is suitable for use as a buffer amplifier for 12- or 14-bit digital-to-analog converters (DACs) and analog-to-digital converters (ADCs). It is also an excellent choice for use in active filters in 12-, 14-, and 16-bit data acquisition systems. Furthermore, its low THD level and close matching AC characteristics make it suitable for many demanding audio applications.

    In summary, the AD713JNZ is a high-performance, precision quad operational amplifier that offers excellent DC and AC characteristics, making it suitable for a wide range of applications including audio, data acquisition, and buffer amplification. Its compact PDIP package and dual supply voltage make it easy to integrate into existing circuits.
