A4993KLPTR-T

The A4993KLPTR-T is a high-performance, dual-channel motor driver IC designed for efficient control of DC motors and stepper motors in various applications. It integrates advanced features to provide precise motor control while ensuring low power consumption and thermal efficiency.

Key Features:

• Dual-Channel Configuration: Supports control of two independent motors, making it suitable for applications requiring multi-motor control.
• Current Control: Includes integrated current sensing to provide accurate control of motor torque and speed. It can limit the current to protect the motors and the driver.
• H-Bridge Output: Utilizes an H-bridge configuration for bidirectional motor control, allowing motors to rotate in both directions.
• PWM Control: Features pulse-width modulation (PWM) inputs for speed control, enabling efficient operation and fine-tuning of motor performance.
• Thermal Protection: Incorporates thermal shutdown and fault detection mechanisms to protect the IC and connected motors from overheating and damage.
• Operating Voltage: Supports a wide operating voltage range, typically from 4.5V to 50V, making it versatile for various motor types and applications.

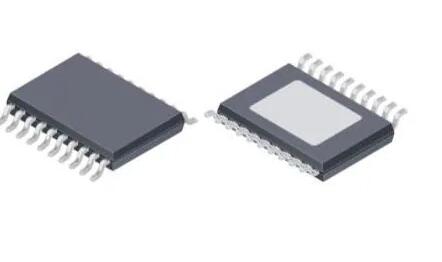

• Compact Package: Available in a compact 28-pin HTSSOP package, allowing for space-efficient designs in embedded systems.

Applications:

• Robotics: Ideal for robotic platforms requiring precise motor control for locomotion and manipulation.
• Automotive: Suitable for automotive applications, such as electric windows, mirrors, and seat adjustments.
• Industrial Automation: Used in conveyor systems, automated assembly lines, and various industrial control systems.
• Consumer Electronics: Can be applied in printers, scanners, and other consumer devices that require motor control.

The A4993KLPTR-T motor driver IC delivers high efficiency and flexibility for motor control applications, making it an excellent choice for both industrial and consumer products that demand reliable performance and compact design.
