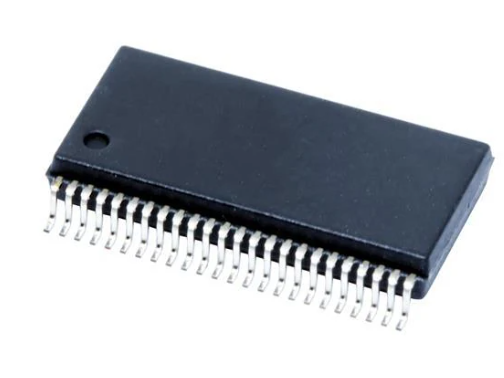

74ALVC164245DLRG4

Manufacturer Part Number: 74ALVC164245DLRG4 Manufacturer / Brand: TI
Part of Description: Translation - Voltage Levels 16-Bit Level Shift Xcvr Lead Free Status / RoHS Status: 16-bit Microcontrollers - MCU MCU 3/5V 56K Pb-free 64-QFP
Ship From: HK/Shen Zhen Shipment Way: DHL/Fedex/TNT/UPS
Datasheets:

Product parameters

ManufacturerTI
DetailsRoHS
Mounting StyleSMD/SMT
Package / CaseSSOP-48
Minimum Operating Temperature– 40 C
Maximum Operating Temperature+85 C
PackagingReel
Moisture SensitiveYes
Product Type3-State
Factory Pack Quantity1000
SubcategoryLogic ICs
Product TypeTranslation – Voltage Levels
FeaturesOutput enable
Unit Weight0.021175 oz

Get in touch with us now

    Please submit your BOM List or Input the part online

    Please complete all required fields with your contact information.Click "SUBMIT REQUEST" we will contact you shortly by email. Or Email us: Sales001@easyiee.com

    First name *

    Last name *

    Company Email *

    Phone number *

    Company name *

    Country *

    Upload file: We support .xls, .xlsx and .csv files under 4MB

    CHOOSE FILE

    Please submit your BOM List or Input the part online

    SUBMIT INFORMATION

    The 74ALVC164245DLRG4 is a high-performance, 16-bit, non-inverting transceiver designed for bidirectional data communication between devices operating at different voltage levels. This transceiver is specifically tailored for interfacing between TTL/CMOS (3.3V) and LVCMOS/LVTTL (2.5V) signal levels.

    The “74ALVC” prefix indicates that this device belongs to the Advanced Low-Voltage CMOS (ALVC) family, which combines the low power consumption of CMOS with the high speed and compatibility of TTL. The “164245” part number specifies that it is a 16-bit transceiver with direction control.

    Key features of the 74ALVC164245DLRG4 include:

    • Bidirectional Communication: Capable of transmitting and receiving data in both directions, making it ideal for applications requiring two-way data flow.
    • Voltage Level Translation: Converts signals between TTL/CMOS (3.3V) and LVCMOS/LVTTL (2.5V) levels, allowing seamless integration of devices operating at different voltages.
    • Direction Control: The direction of data flow is controlled by two active-low direction control inputs (DIR and /DIR), providing flexible data communication options.
    • High Speed: Operates at high speeds, making it suitable for applications requiring fast data transfer rates.
    • Low Power Consumption: Utilizes CMOS technology to minimize power consumption, making it suitable for power-sensitive applications.
    • Robust Design: Built to withstand the electrical and environmental conditions typically encountered in industrial and automotive applications.

    The “DLRG4” suffix of the part number provides additional information about the device’s packaging and specifications:

    • D: Indicates a Pb-free (lead-free) package, which is compliant with RoHS (Restriction of Hazardous Substances) regulations.
    • L: Denotes a leadless package, which is typically smaller and more compact than traditional leaded packages.
    • RG4: Specifies the specific package type, which in this case is likely a surface-mount technology (SMT) package with a specific pin configuration and size.

    Overall, the 74ALVC164245DLRG4 is a versatile and reliable transceiver ideal for a wide range of applications requiring bidirectional data communication between devices operating at different voltage levels.
