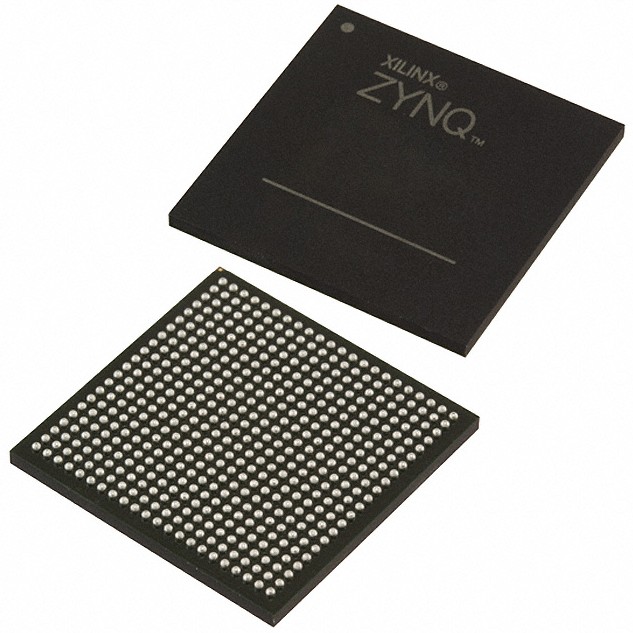

Manufacturer Part Number: XC7Z012S-2CLG485I Manufacturer / Brand: Xilinx
Part of Description: SoC FPGA XC7Z012S-2CLG485I Lead Free Status / RoHS Status: table_img Lead free / RoHS Compliant
Ship From: HK/Shen Zhen Shipment Way: DHL/Fedex/TNT/UPS

Product parameters

Product StatusActive
Product CategorySoC FPGA
Package / Case485-LFBGA, CSPBGA
Mounting StyleSMD/SMT
Maximum Operating Temperature-40C
Minimum Operating Temperature+100 C
Product TypeProcessors – Application Specialized
Factory Pack Quantity4200
Moisture SensitiveYes
Number of Cores1 Core
Maximum Clock Frequency766 MHz
Number of Logic Elements55000 LE
Embedded Memory2.5 Mbit
Number of I/Os150 I/O

Get in touch with us now

    Please submit your BOM List or Input the part online

    Please complete all required fields with your contact information.Click "SUBMIT REQUEST" we will contact you shortly by email. Or Email us: Sales001@easyiee.com

    First name *

    Last name *

    Company Email *

    Phone number *

    Company name *

    Country *

    Upload file: We support .xls, .xlsx and .csv files under 4MB


    Please submit your BOM List or Input the part online


    What is XC7Z012S-2CLG485I?

    XC7: Signifies that it’s part of the 7 series FPGA family.

    Z: Denotes that it’s a Zynq device, which is a combination of FPGA fabric and ARM processor.

    012: Suggests a specific model or capacity within the Zynq-7000 series.

    -2: Represents the speed grade of the device. Different speed grades have varying performance characteristics.

    CLG485: Specifies the package type. “CLG485” likely indicates a specific package with 485 pins.

    I: Indicates the industrial temperature range.

    XC7Z012S-2CLG485I Applications:

    Embedded Systems: Zynq-7000 devices are frequently employed in embedded systems where a combination of programmable logic and processing power is required. This includes applications in industrial automation, medical devices, and consumer electronics.

    Communications: The flexibility of programmable logic makes Zynq-7000 suitable for communication applications, including networking equipment, wireless communication systems, and protocols implementation.

    Image and Signal Processing: The FPGA fabric can be used for real-time image and signal processing tasks. This is valuable in applications such as medical imaging, video processing, and radar systems.

    Aerospace and Defense: Zynq-7000 devices are used in aerospace and defense applications, including radar systems, avionics, and communication systems, due to their versatility and reliability.

    Automotive: In the automotive industry, Zynq-7000 devices find applications in advanced driver-assistance systems (ADAS), in-vehicle infotainment, and control systems.

    Industrial Control and Automation: These FPGAs are well-suited for industrial control systems, providing real-time processing capabilities for monitoring and control tasks.

    IoT (Internet of Things): Zynq-7000 devices can be used in IoT applications where customization and adaptability are essential. They enable the integration of hardware acceleration and processing power for IoT edge devices.

    Medical Devices: Due to their real-time processing capabilities, Zynq-7000 devices are used in medical devices, including diagnostic equipment and imaging systems.

    Test and Measurement: In applications requiring high-speed data processing and acquisition, Zynq-7000 FPGAs can be used for test and measurement instruments.

    Consumer Electronics: Zynq-7000 devices are found in various consumer electronics applications, including smart cameras, set-top boxes, and multimedia systems.
