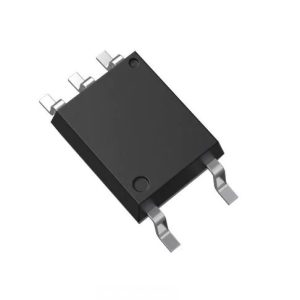

Manufacturer Part Number: TLP185 Manufacturer / Brand: Toshiba
Part of Description: SoC FPGA TLP185 Lead Free Status / RoHS Status: table_img Lead free / RoHS Compliant
Ship From: HK/Shen Zhen Shipment Way: DHL/Fedex/TNT/UPS

Product parameters

Mounting StyleSMD/SMT
Package / Case6-SOIC
Maximum Operating Temperature-55 C
Minimum Operating Temperature+110C
Factory Pack Quantity3000
Moisture SensitiveYes
Voltage – Isolation3750Vrms
Voltage – Output (Max)80V
Vce Saturation (Max)300mV
Unit Weight0.002822 oz
