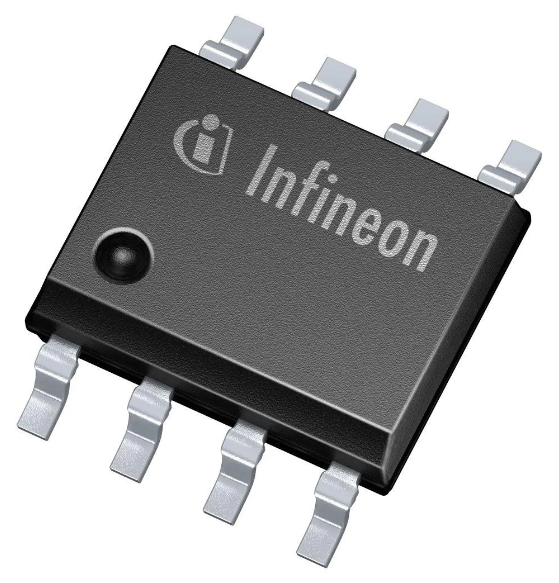

TLE5012BE1000

The TLE5012B E1000 is a highly accurate GMR (Giant Magnetoresistive) angle sensor designed for precise angular position measurement. It offers a digital interface with PWM, SENT, or SPC outputs, and provides fast and robust angle sensing, making it suitable for automotive and industrial applications. The sensor is highly reliable, operating over a wide temperature range, and features self-diagnostics and overvoltage protection for enhanced durability.

Key Features:

• GMR Technology: Ensures high precision and stability in angle measurement.
• Digital Interface: Supports PWM, SENT, or SPC outputs for flexible integration.
• Wide Operating Range: Can function in temperatures from -40°C to 150°C, ideal for harsh environments.
• High Accuracy: Provides precise angle measurement with a resolution of up to 16 bits.
• Self-Diagnostics: Built-in diagnostic features enhance reliability and safety.
• Overvoltage Protection: Protects the sensor against voltage spikes, ensuring long-term operation.

Applications:

• Automotive Systems: Used in steering angle sensors, throttle position sensors, and motor control applications.
• Industrial Automation: Suitable for precise angular position feedback in robotics, conveyor systems, and machinery.
• Motor Control: Ideal for providing feedback in brushless DC motor (BLDC) control systems.

The TLE5012B E1000 offers high performance, robust angle sensing, and is an excellent choice for applications requiring reliable and accurate angular measurements.
