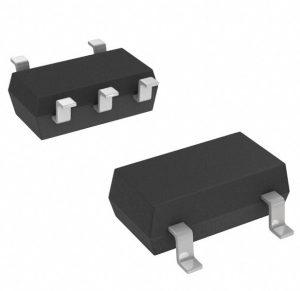

Manufacturer Part Number: TC7SZ126FU Manufacturer / Brand: Toshiba
Part of Description: SoC FPGA TC7SZ126FU Lead Free Status / RoHS Status: table_img Lead free / RoHS Compliant
Ship From: HK/Shen Zhen Shipment Way: DHL/Fedex/TNT/UPS

Product parameters

Package / CaseSSOP5-P-0.65A
Mounting StyleSMD/SMT
Maximum Operating Temperature– 40 C
Minimum Operating Temperature+85 C
Factory Pack Quantity3000
Moisture SensitiveYes
Pd – Power Dissipation200 mW
Supply Voltage – Max5.5 V
Supply Voltage – Min1.8 V
Unit Weight0.000212 oz

Get in touch with us now

    Please submit your BOM List or Input the part online

    Please complete all required fields with your contact information.Click "SUBMIT REQUEST" we will contact you shortly by email. Or Email us:

    First name *

    Last name *

    Company Email *

    Phone number *

    Company name *

    Country *

    Upload file: We support .xls, .xlsx and .csv files under 4MB


    Please submit your BOM List or Input the part online


    TC7SZ126FU Applications:

    Bus Buffering: The TC7SZ126FU can be used to buffer and isolate signals on a bus. It helps prevent loading effects and signal degradation when driving multiple loads.

    Signal Level Shifting: In systems with different voltage levels, the buffer gate can be used to shift the signal levels to match the requirements of the receiving circuit.

    Clock Distribution: In clock distribution networks, buffer gates help in driving the clock signals to multiple destinations while minimizing signal distortion and delay.

    Data Line Isolation: It can be used to isolate sections of a digital system, ensuring that changes in one section do not affect others.

    Fan-Out Expansion: The buffer gate can be used to increase the fan-out capability of a digital signal, allowing a single output to drive multiple inputs.

    Three-State Output Control: The three-state output feature allows the output to be actively driven high, actively driven low, or in a high-impedance state (disconnected). This is useful for creating a wired-AND or wired-OR configurations.

    Digital Signal Processing: In digital signal processing (DSP) applications, buffer gates are used to interface between different sections of the processing pipeline.

    Voltage Level Translation: When interfacing between different voltage domains, the buffer gate can be used for voltage level translation.

    Logic Signal Conditioning: It can be used to condition logic signals, ensuring clean and reliable signal propagation.

    General Logic Interface: The TC7SZ126FU can be used in various digital logic interface applications where signal buffering and isolation are required.
