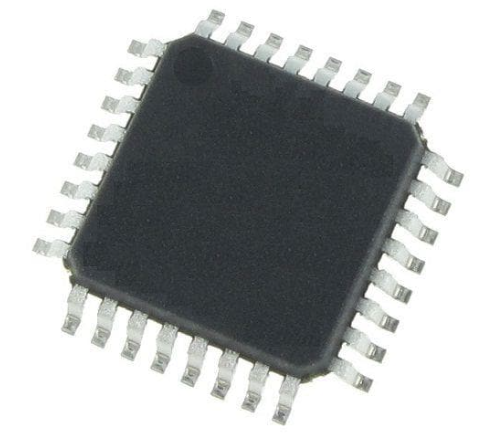

S9S08DZ60F2MLC

Manufacturer Part Number: S9KEAZN32AMLCR Manufacturer / Brand: NXP
Part of Description: ARM Microcontrollers - MCU KINETIS E SERIES 32K FLASH 4K RAM 40MHz 32LQFP Lead Free Status / RoHS Status: table_img Lead free / RoHS Compliant
Ship From: HK/Shen Zhen Shipment Way: DHL/Fedex/TNT/UPS
Datasheets:

Product parameters

ManufacturerNXP
DetailsRoHS
Mounting StyleSMD/SMT
Package / CaseLQFP-32
Maximum Clock Frequency40 MHz
ADC Resolution12 bit
Number of I/Os26 I/O
PackagingReel
Minimum Operating Temperature– 40 C
Maximum Operating Temperature+ 125 C
Factory Pack Quantity1250
SubcategoryMicrocontrollers – MCU
Part # Aliases935320056557
Unit Weight0.006653 oz

Get in touch with us now

    Please submit your BOM List or Input the part online

    Please complete all required fields with your contact information.Click "SUBMIT REQUEST" we will contact you shortly by email. Or Email us: Sales001@easyiee.com

    First name *

    Last name *

    Company Email *

    Phone number *

    Company name *

    Country *

    Upload file: We support .xls, .xlsx and .csv files under 4MB

    CHOOSE FILE

    Please submit your BOM List or Input the part online

    SUBMIT INFORMATION

    The S9KEAZN32AMLCR is a 32-bit microcontroller from NXP’s Kinetis E series, designed for low-power, high-performance applications. It integrates a range of features suitable for automotive, industrial, and consumer electronics, providing a balance of processing capability and power efficiency.

    Key Features:

    • Core:
      • CPU: Features a 32-bit ARM Cortex-M0+ core, operating at up to 48 MHz, delivering efficient processing power for real-time applications.
      • Architecture: ARM Cortex-M0+ provides a good balance of performance and low power consumption, ideal for embedded systems.
    • Memory:
      • Flash Memory: Includes 32 KB of Flash memory for storing application code and data.
      • SRAM: Equipped with 4 KB of SRAM for fast, volatile data storage.
      • EEPROM: Includes 2 KB of EEPROM for non-volatile storage of configuration and calibration data.
    • Peripherals:
      • Analog:
        • ADC: 12-bit Analog-to-Digital Converter (ADC) for high-resolution analog signal processing.
      • Communication Interfaces:
        • UART: Serial communication interface for asynchronous data transfer.
        • SPI: Serial Peripheral Interface for high-speed data transfer.
        • I²C: Inter-Integrated Circuit interface for communication with peripheral devices.
      • Timers and PWM:
        • Timers: Includes multiple timers for precise timekeeping and event management.
        • PWM: Pulse Width Modulation channels for motor control and signal generation.
      • Others:
        • GPIO: General-purpose input/output pins for interfacing with external devices.
        • Watchdog Timer: Provides fault detection and recovery mechanisms.
    • Power Management:
      • Low Power Modes: Designed with various power-saving modes to extend battery life and reduce power consumption.
      • Operating Voltage: Supports a wide voltage range, making it versatile for different power supply configurations.
    • Package:
      • Package Type: Available in a 32-pin LQFP (Low-profile Quad Flat Package) or similar package options, offering a compact and robust solution for embedded systems.

    Applications:

    • Automotive: Suitable for automotive control systems, including body control modules and infotainment systems.
    • Industrial: Ideal for industrial automation, sensor interfaces, and control systems.
    • Consumer Electronics: Useful in consumer devices requiring efficient processing and low power consumption, such as wearable technology and smart home devices.

    The S9KEAZN32AMLCR microcontroller provides a powerful yet efficient 32-bit ARM Cortex-M0+ core, ample memory, and a comprehensive set of peripherals, making it well-suited for a variety of embedded applications in automotive, industrial, and consumer electronics.
