S912XDT256F1MAL

The S912XDT256F1MAL is a 16-bit microcontroller from the NXP (formerly Freescale) HCS12X family, designed for embedded control applications, especially in the automotive and industrial sectors. It provides a versatile set of features for high-performance and real-time applications. Key specifications include:

1. Core:
   • Powered by the HCS12X 16-bit core, offering efficient processing and real-time control capabilities.
2. Memory:
   • 256KB Flash memory for storing program code.
   • 12KB RAM for fast data processing and temporary storage.
3. Operating Speed:
   • Operates at up to 40 MHz, enabling fast execution of complex tasks.
4. Peripherals:
   • Comprehensive set of peripherals, including timers, PWM modules, A/D converters, and various serial communication interfaces (SPI, I2C, UART, CAN).
   • Includes motor control timers and other specialized embedded peripherals.
5. Low Power:
   • Supports multiple low-power modes, optimizing energy efficiency for battery-powered and low-energy applications.
6. Package:

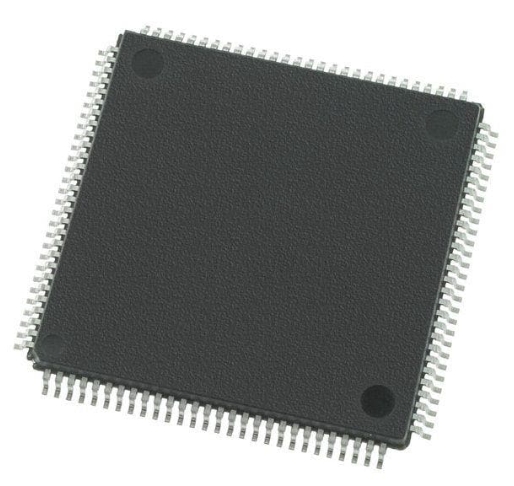

   • Available in a 112-LQFP package, ideal for compact designs.
7. Applications:
   • Well-suited for automotive control systems, industrial automation, motor control, and other embedded applications requiring real-time performance and reliable peripheral integration.

The S912XDT256F1MAL provides a balanced combination of memory, speed, and peripheral features, making it ideal for demanding embedded systems in automotive and industrial environments.
