S912XDP512J1MAL

The S912XDP512J1MAL is a high-performance microcontroller from NXP’s S12(X) family, designed for demanding automotive and industrial applications. It integrates advanced processing capabilities, extensive peripheral options, and robust memory features to support complex embedded systems.

Key Features:

• Core:
  • CPU: Features a 16-bit HC12/9S CPU core, running at up to 80 MHz, providing a balance of performance and efficiency for real-time applications.
  • Execution Speed: Capable of executing instructions efficiently with reduced latency and high throughput.
• Memory:
  • Flash Memory: Includes 512 KB of Flash memory for storing code and application data, providing ample space for complex applications.
  • SRAM: Equipped with 64 KB of SRAM for fast access to data and variables, enhancing system performance.
  • EEPROM: Features 16 KB of EEPROM for non-volatile storage of configuration and calibration data.
• Peripherals:
  • Analog:
    • ADC: 16-channel 12-bit Analog-to-Digital Converter (ADC) for high-resolution analog signal processing.
    • DAC: 12-bit Digital-to-Analog Converter (DAC) for generating analog output signals.
  • Communication Interfaces:
    • UART: Multiple UARTs for serial communication.
    • SPI: Serial Peripheral Interface for high-speed data transfer.
    • I²C: Inter-Integrated Circuit interface for connecting to peripheral devices.
    • CAN: Controller Area Network for robust automotive and industrial communication.
  • Timers and PWM:
    • Timers: Includes multiple 16-bit and 32-bit timers for precise timing and event control.
    • PWM: Pulse Width Modulation channels for motor control and signal generation.
  • Others:
    • GPIO: General-purpose input/output pins for interfacing with external devices.
    • Watchdog Timer: For system fault detection and recovery.
• Power Management:
  • Low Power Modes: Various power-saving modes to extend battery life and reduce power consumption in energy-sensitive applications.
  • Operating Voltage: Supports a wide operating voltage range for flexible integration into different systems.
• Package:

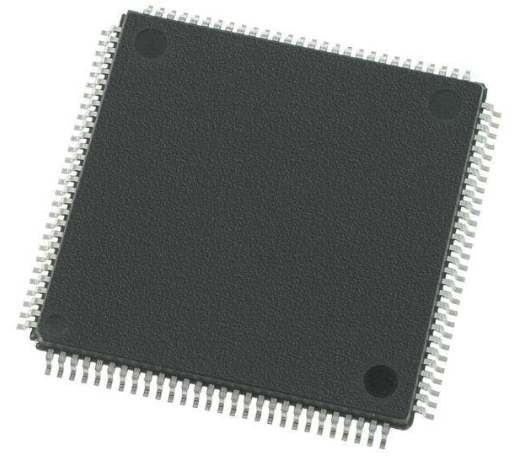

  • Package Type: Available in a 144-pin LQFP (Low-profile Quad Flat Package), offering a robust and space-efficient solution for complex systems.

Applications:

• Automotive: Ideal for automotive control systems, including engine management, safety systems, and infotainment.
• Industrial: Suitable for industrial automation, process control, and instrumentation applications.
• Consumer Electronics: Can be used in high-end consumer devices requiring advanced processing and reliable performance.

The S912XDP512J1MAL microcontroller offers a comprehensive set of features, combining high processing power, extensive memory, and versatile peripherals to support a wide range of sophisticated applications in automotive and industrial sectors.
