RC0603JR-0710KL

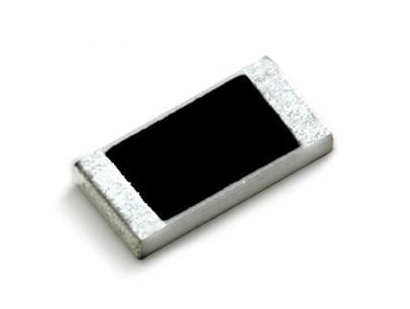

The RC0603JR-0710KL is a high-precision surface-mount resistor manufactured by Yageo, designed for use in various electronic applications requiring accurate and stable resistance values. It is part of the RC series, known for its reliability and performance in compact, surface-mount packages.

Key Features:

• Resistance Value: 10 kΩ (10,000 ohms), providing precise resistance for accurate circuit performance.
• Tolerance: ±5%, indicating that the resistor’s value will be within 5% of the specified resistance, suitable for moderate tolerance requirements.
• Package Size: 0603 (1.6 mm x 0.8 mm), a compact surface-mount package ideal for high-density PCB layouts and space-constrained designs.
• Power Rating: 1/10W (0.1W), suitable for low-power applications where minimal heat dissipation is needed.
• Temperature Coefficient: Typically around ±100 ppm/°C, ensuring minimal resistance variation with temperature changes.
• High Reliability: Designed to offer stable performance and longevity in various electronic circuits, ensuring consistent operation over time.

Typical Applications:

• Consumer Electronics: Used in devices such as smartphones, tablets, and home appliances where precise resistance values are critical.
• Automotive Systems: Applied in automotive electronics for accurate measurement and control in vehicle components.
• Industrial Equipment: Utilized in industrial control systems and machinery for reliable performance in demanding environments.
• Communication Devices: Employed in communication systems and equipment for accurate signal conditioning and impedance matching.

The RC0603JR-0710KL is valued for its precise resistance, compact size, and reliability, making it an excellent choice for a wide range of surface-mount applications in consumer, automotive, industrial, and communication electronics.
