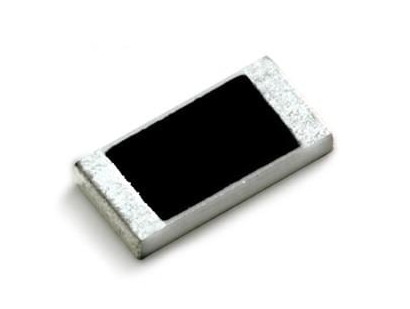

RC0603JR-07100KL

The RC0603JR-07100KL is a precision surface-mount resistor from Yageo, designed for use in various electronic circuits requiring stable and accurate resistance values. It is part of the RC series, known for its reliability and performance in surface-mount applications.

Key Features:

• Resistance Value: 100 kΩ (100,000 ohms), providing precise resistance for accurate circuit performance.
• Tolerance: ±5%, ensuring the resistor’s value is within 5% of the specified resistance, suitable for applications with moderate tolerance requirements.
• Package Size: 0603 (1.6 mm x 0.8 mm), a compact surface-mount package ideal for space-constrained designs and high-density circuit boards.
• Power Rating: 1/10W (0.1W), suitable for applications with low power dissipation needs.
• Temperature Coefficient: Typically features a temperature coefficient of ±100 ppm/°C, indicating minimal resistance change with temperature variations.
• High Reliability: Designed for stable performance in various electronic applications, ensuring long-term reliability and consistent operation.

Typical Applications:

• Consumer Electronics: Used in consumer electronics such as smartphones, tablets, and home appliances for accurate resistance and signal conditioning.
• Automotive Electronics: Applied in automotive systems for precise control and measurement in various vehicle components.
• Industrial Equipment: Utilized in industrial control systems and machinery for reliable performance in harsh environments.
• Communication Devices: Employed in communication devices and equipment for accurate signal processing and impedance matching.

The RC0603JR-07100KL is valued for its precise resistance value, compact size, and reliability, making it an excellent choice for a wide range of surface-mount applications in both consumer and industrial electronics.
