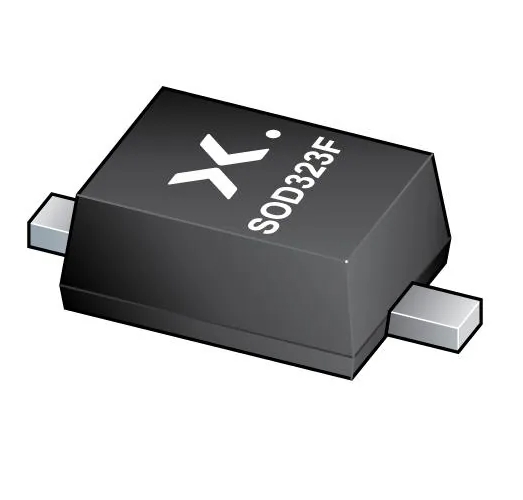

PMEG4010CEJ

The PMEG4010CEJ is a low forward voltage Schottky barrier rectifier designed for power management applications. It offers high efficiency and fast switching performance, making it ideal for use in circuits requiring low power loss and minimal heat generation.

Key Features:

• Low Forward Voltage: Designed with a low forward voltage drop (typically around 0.37V at 1A), which helps minimize power loss and improve efficiency in power conversion applications.
• High Current Capability: Supports a continuous forward current of up to 1A, suitable for low to medium power applications.
• Fast Switching: The Schottky technology enables fast switching speeds, making it ideal for high-frequency applications such as DC-DC converters and power supplies.
• Reverse Voltage: Can handle a maximum reverse voltage of 40V, providing sufficient headroom for protection against voltage spikes and reverse bias conditions.

Thermal and Power Efficiency:

• Low Power Dissipation: Due to its low forward voltage, the device reduces power dissipation, making it ideal for applications where heat generation needs to be minimized.
• Thermal Resistance: Offers excellent thermal performance, allowing it to maintain efficiency under continuous operation.

Package:

• Package Type: Available in a compact DFN1006B-2 (Discrete Flat No-lead) surface-mount package, making it suitable for space-constrained designs with efficient heat dissipation properties.

Applications:

• DC-DC Converters: Suitable for use in DC-DC converters where efficiency and fast switching are crucial.
• Power Supplies: Ideal for regulated power supplies, where low forward voltage drop and fast recovery are needed.
• Battery-Powered Devices: Useful in battery-operated devices due to its low power loss characteristics.
• General Power Rectification: Can be used in general power rectification circuits, providing high efficiency and low power loss.

The PMEG4010CEJ Schottky rectifier is designed to provide efficient rectification with minimal forward voltage drop and heat generation, making it a great choice for power-sensitive and space-constrained applications.
