PESD5V0U5BV
Manufacturer Part Number: PESD5V0U5BV | Manufacturer / Brand: Nexperia |
Part of Description: SoC FPGA PESD5V0U5BV | Lead Free Status / RoHS Status: ![]() |
Ship From: HK/Shen Zhen | Shipment Way: DHL/Fedex/TNT/UPS |
Datasheets: |
Product parameters
Manufacturer | Nexperia |
RoHS | Details |
Package | Reel |

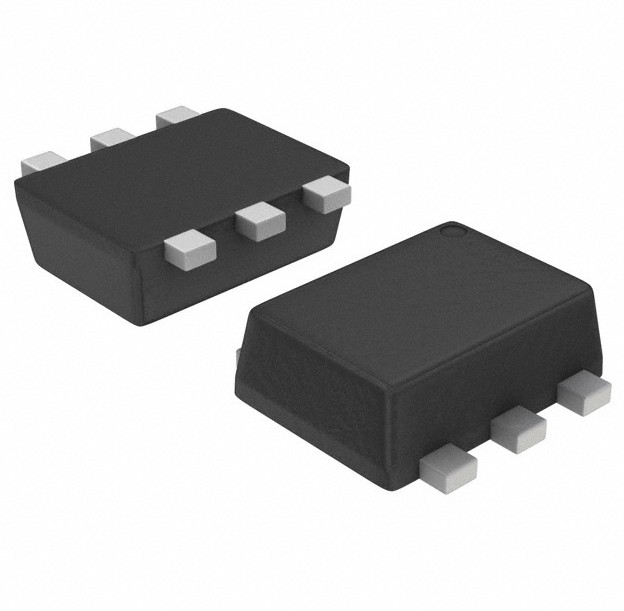

Package / Case | SOT-563, SOT-666 |
Mounting Style | SMD/SMT |
Maximum Operating Temperature | -55C |
Minimum Operating Temperature | +150C |
Factory Pack Quantity | 3000 |
Moisture Sensitive | Yes |
Qualification | AEC-Q101 |
Capacitance @ Frequency | 2.9pF @ 1MHz |
Voltage – Breakdown (Min) | 5.5V |
Base Product Number | PESD5 |
Get in touch with us now
PESD5V0U5BV Applications:
USB Ports:
The diode can be used to protect USB (Universal Serial Bus) ports on various devices, including computers, smartphones, and other electronic equipment.
Communication Interfaces:
It can be applied to protect communication interfaces such as RS-232, RS-485, Ethernet, and other data communication lines from voltage spikes and ESD.
Audio/Video Equipment:
In audio and video equipment, the diode can safeguard sensitive circuits from voltage transients, ensuring reliable performance.
Microcontroller and Microprocessor Inputs:
The diode can be placed at the inputs of microcontrollers and microprocessors to protect them from voltage spikes and ESD events.
Sensor Inputs:
Electronic sensors, especially those used in industrial applications, can benefit from the diode for protection against voltage transients.
Mobile Devices:
Smartphones, tablets, and other mobile devices can use the diode to protect charging ports and other interfaces from ESD and transient events.
Wearable Electronics:
Wearable devices with exposed connectors or interfaces can employ the diode for protection against voltage transients.
Automotive Electronics:
In automotive electronics, the diode can be used to protect sensitive electronic components from voltage transients caused by ESD and other factors.
Medical Devices:
Medical equipment with electronic components can utilize the diode for protection against voltage transients, ensuring the reliability of critical systems.
Industrial Control Systems:
Industrial control systems with numerous interfaces and communication ports can benefit from protection against voltage transients.
Printed Circuit Boards (PCBs):
The diode can be integrated into PCB designs to protect various components from voltage transients.
Portable Electronics:
Devices such as digital cameras, handheld gaming consoles, and other portable electronics can use the diode for protection against voltage spikes.
Network Equipment:
Routers, switches, and other network equipment can employ the diode to protect against voltage transients on data lines.
RF Systems:
Radio frequency (RF) systems and transceivers can benefit from protection against voltage transients to maintain signal integrity.
