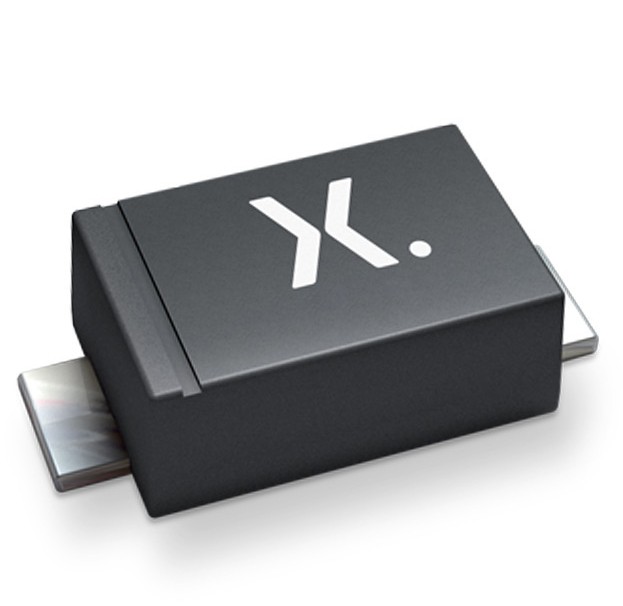

Manufacturer Part Number: PESD12VL1BA Manufacturer / Brand: Nexperia
Part of Description: SoC FPGA PESD12VL1BA Lead Free Status / RoHS Status: table_img Lead free / RoHS Compliant
Ship From: HK/Shen Zhen Shipment Way: DHL/Fedex/TNT/UPS

Product parameters

Package / CaseSC-76, SOD-323
Mounting StyleSMD/SMT
Maximum Operating Temperature-55C
Minimum Operating Temperature+150C
Factory Pack Quantity3000
Moisture SensitiveYes
Voltage – Breakdown (Min)13.3V
Voltage – Clamping (Max) @ Ipp26V
Power – Peak Pulse260W
Base Product NumberPESD12

Get in touch with us now

    Please submit your BOM List or Input the part online

    Please complete all required fields with your contact information.Click "SUBMIT REQUEST" we will contact you shortly by email. Or Email us:

    First name *

    Last name *

    Company Email *

    Phone number *

    Company name *

    Country *

    Upload file: We support .xls, .xlsx and .csv files under 4MB


    Please submit your BOM List or Input the part online


    PESD12VL1BA Applications:

    Communication Ports:

    The diode can be used to protect communication ports such as USB, HDMI, Ethernet, and other interfaces from ESD events.

    Data Lines:

    In electronic devices with sensitive data lines, the PESD12VL1BA can be employed to prevent damage caused by electrostatic discharge.

    Audio/Video Equipment:

    It can be used in audio and video equipment to protect sensitive circuits from ESD events, ensuring reliable performance.

    Microcontroller and Microprocessor Inputs:

    The diode can be placed at the inputs of microcontrollers and microprocessors to safeguard them from electrostatic discharge.

    Sensor Inputs:

    Electronic sensors, especially those used in industrial applications, can benefit from ESD protection to ensure accurate and reliable measurements.

    Mobile Devices:

    Smartphones, tablets, and other mobile devices often have multiple ports and interfaces susceptible to ESD, making the PESD12VL1BA suitable for protection.

    Wearable Electronics:

    Wearable devices with exposed connectors or interfaces can use the diode for ESD protection to enhance robustness.

    Automotive Electronics:

    In automotive electronics, the diode can be employed to protect sensitive electronic components from ESD events.

    Medical Devices:

    Medical equipment with electronic components can use the PESD12VL1BA to enhance ESD protection in critical areas.

    Industrial Control Systems:

    Industrial control systems with numerous interfaces and communication ports can benefit from ESD protection to ensure continuous operation.

    Printed Circuit Boards (PCBs):

    The diode can be integrated into PCB designs to protect various components from electrostatic discharge.

    Portable Electronics:

    Devices such as digital cameras, handheld gaming consoles, and other portable electronics can utilize the diode for ESD protection.

    Network Equipment:

    Routers, switches, and other network equipment can employ the diode to protect against ESD events on data lines.

    RF Systems:

    Radio frequency (RF) systems and transceivers can benefit from ESD protection to maintain signal integrity.
