NTA4001NT1G

The NTA4001NT1G is a general-purpose N-channel MOSFET designed for low-power switching applications. It features low on-resistance and fast switching speeds, making it ideal for power management in various electronic devices.

Description:

• Type: N-Channel MOSFET
• Manufacturer: ON Semiconductor

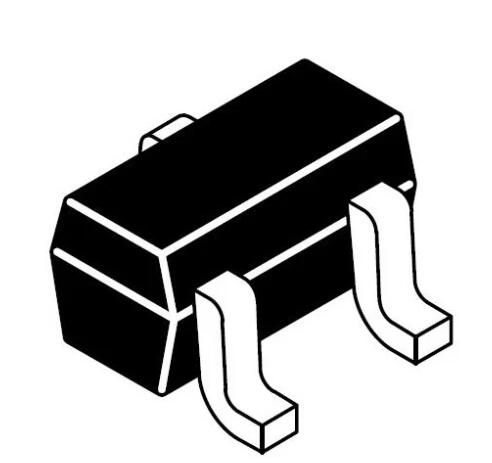

• Package: SOT-23 (Small Outline Transistor, 3 pins)
• Drain-Source Voltage (Vds): 40V
• Continuous Drain Current (Id): 200mA
• On-Resistance (Rds(on)): As low as 3Ω at 10V gate drive

Key Features:

• Low On-Resistance: Ensures low power dissipation and efficient operation in switching circuits.
• Fast Switching Speed: Optimized for high-speed switching applications, improving overall circuit efficiency.
• Compact Package: The small SOT-23 package allows for easy integration into space-constrained designs.
• Low Gate Threshold Voltage: Can be driven directly by logic-level signals, simplifying the design of control circuits.
• High Efficiency: Suitable for battery-powered devices where power efficiency is critical.

Applications:

• Power Management: Ideal for use in low-power switching circuits, such as power management systems in portable devices.
• DC-DC Converters: Can be used in buck or boost converter designs for efficient power conversion.
• Signal Switching: Suitable for general-purpose switching of low-power signals in consumer electronics.
• Motor Control: Can be used in small motor drivers for low-current motor control applications.

Package Dimensions:

• SOT-23: A small and cost-effective surface-mount package that supports high-density PCB designs.

Reference Documents:

For detailed technical specifications, electrical characteristics, and design recommendations, refer to the NTA4001NT1G datasheet available from ON Semiconductor’s official website.
