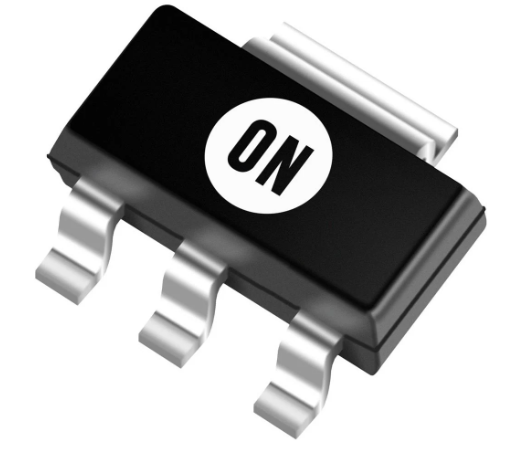

NCP1015ST100T3G

The NCP1015ST100T3G is a high-voltage, low-power switching regulator designed for applications requiring efficient power conversion in a compact form factor. This device integrates a high-voltage power MOSFET and operates in flyback topology, making it suitable for various AC-DC and DC-DC power supply designs.

Key Features:

• High Voltage Operation: Capable of operating with input voltages up to 100V, making it suitable for applications in industrial and consumer electronics.
• Integrated MOSFET: Contains a high-voltage MOSFET, which reduces the need for external components and simplifies the design.
• Low Standby Power: Designed for low power consumption during standby mode, enhancing energy efficiency in power supply applications.
• Wide Operating Frequency: Operates at a frequency of up to 100 kHz, allowing for smaller transformer sizes and improved efficiency.
• Built-in Protection Features: Includes overvoltage protection, thermal shutdown, and current limiting to enhance reliability and safety in the application.

Applications:

• AC-DC Power Supplies: Ideal for power adapters and chargers in consumer electronics and industrial equipment.
• LED Drivers: Suitable for driving LED lighting systems requiring efficient power conversion.
• Isolated DC-DC Converters: Used in applications where isolation is necessary between input and output.

The NCP1015ST100T3G is a versatile and reliable solution for engineers designing efficient power supply circuits across a wide range of applications.
