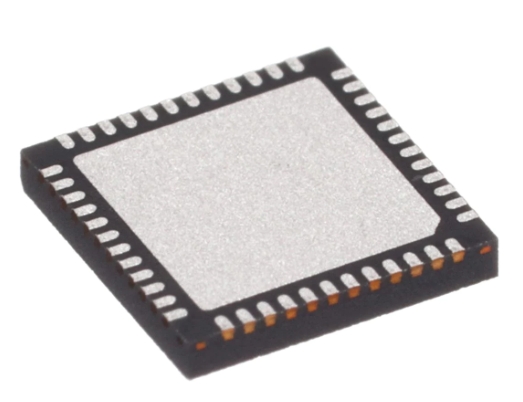

MC9S08GT60ACFDER

The MC9S08GT60ACFDER is a versatile 8-bit microcontroller from NXP Semiconductors, designed for a wide range of embedded applications requiring reliable performance and low power consumption. It is part of the HCS08 family and offers an array of features suitable for automotive, industrial, and consumer electronics. Here are the key features and specifications:

1. Core:
   • HCS08 Core: 8-bit microcontroller core with a maximum operating frequency of 48 MHz, providing efficient processing power for embedded applications.
2. Memory:
   • Flash Memory: 60 KB of Flash memory for program storage, allowing for complex software and firmware applications.
   • SRAM: 4 KB of SRAM for data storage and manipulation.
3. Peripherals:
   • Timers: Multiple timers, including a 16-bit timer and a 16-bit PWM (Pulse Width Modulation) timer, for accurate timing and signal control.
   • ADC: 10-bit Analog-to-Digital Converter (ADC) with up to 8 channels for analog signal processing.
   • DAC: 8-bit Digital-to-Analog Converter (DAC) for analog signal output.
   • Serial Communication: Multiple communication interfaces, including UART (Universal Asynchronous Receiver/Transmitter), SPI (Serial Peripheral Interface), and I²C (Inter-Integrated Circuit) for flexible communication options.
   • GPIO: General-purpose input/output pins for interfacing with external devices and peripherals.
4. Power Management:
   • Low Power Modes: Various low power modes including sleep and stop modes to minimize power consumption in battery-operated and energy-efficient designs.
   • Operating Voltage: Operates over a supply voltage range of 2.7V to 5.5V.
5. Package:
   • Package Type: Available in a 48-pin LQFP (Low-profile Quad Flat Package), providing a compact form factor for space-constrained applications.
6. Development Support:
   • Debugging: Supports standard debugging interfaces and tools for development and troubleshooting, including background debug mode.
7. Applications:
   • Automotive: Suitable for automotive applications requiring reliable control and communication functions.
   • Industrial Control: Ideal for industrial automation and control systems with its versatile peripheral set and low power features.
   • Consumer Electronics: Used in various consumer electronics requiring an 8-bit microcontroller with efficient performance and connectivity.

The MC9S08GT60ACFDER offers a blend of performance, memory, and peripheral features, making it a versatile choice for a wide range of embedded applications, particularly where low power consumption and reliable operation are essential.
