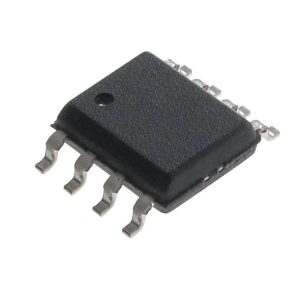

MAX487ESA+T
Manufacturer Part Number: MAX487ESA+T | Manufacturer / Brand: Analog Devices Inc |
Part of Description: SoC FPGA MAX487ESA+T | Lead Free Status / RoHS Status: Lead free / RoHS Compliant |
Ship From: HK/Shen Zhen | Shipment Way: DHL/Fedex/TNT/UPS |
Datasheets: |
Product parameters
Manufacturer | Analog Devices Inc |
RoHS | Details |
Package | Reel |
Package / Case | SOIC-8 |
Mounting Style | SMD/SMT |
Brand | Analog Devices / Maxim Integrated |
Maximum Operating Temperature | -40 C |
Minimum Operating Temperature | +85C |
Series | MAX487 |
Factory Pack Quantity | 2500 |
Moisture Sensitive | Yes |
Duplex | Half Duplex |
Data Rate | 250 kb/s |
Supply Voltage – Min | 5.25 V |
Supply Voltage – Max | 4.75 V |
On Time – Max | 225 ns |
Off Time – Max | 185 ns |
Width | 4 mm |
Unit Weight | 0.019048 oz |
Get in touch with us now
MAX487ESA+T Applications:
Industrial Automation:
RS-485 transceivers are widely used in industrial automation for communication between PLCs (Programmable Logic Controllers), sensors, actuators, and other field devices.
Building Automation Systems:
Applied in building automation for communication between control systems, sensors, and actuators. RS-485 is suitable for HVAC (heating, ventilation, and air conditioning) systems, lighting control, and other building management applications.
Process Control Systems:
Utilized in process control systems for communication between various components in a distributed control system (DCS).
Motor Control:
Used in motor control applications for transmitting control signals between a central controller and motor drives. RS-485 is suitable for these applications due to its noise immunity.
Data Acquisition Systems:
Commonly used in data acquisition systems for transmitting sensor data over long distances. The MAX487ESA+T facilitates reliable communication in these applications.
Instrumentation Systems:
Employed in instrumentation systems for communication between measurement instruments and data acquisition units.
Security and Access Control Systems:
Integrated into security systems for communication between access control panels, security cameras, and other security devices.
Solar Inverter Systems:
Used in solar inverter systems for monitoring and control. RS-485 communication enables data transmission between inverters and a central control unit.
Telecommunications Infrastructure:
Applied in telecommunications infrastructure for communication between network components. The MAX487ESA+T can be part of communication interfaces in networking equipment.
Energy Management Systems:
Used in energy management systems for communication between energy meters, sensors, and control units.
Robotics:
Integrated into robotics applications where RS-485 communication is used for transmitting control signals and sensor data between different components of a robotic system.
Traffic Control Systems:
Employed in traffic control systems for communication between traffic signal controllers, sensors, and central control units.
Elevator Control Systems:
Used in elevator control systems for communication between different elevator components, including control panels and motor drives.
Remote Monitoring Systems:
RS-485 is used in remote monitoring systems where data needs to be transmitted over long distances. The MAX487ESA+T ensures reliable communication in such applications.
Automotive Applications:
RS-485 communication may be used in automotive applications for communication between different vehicle components.
