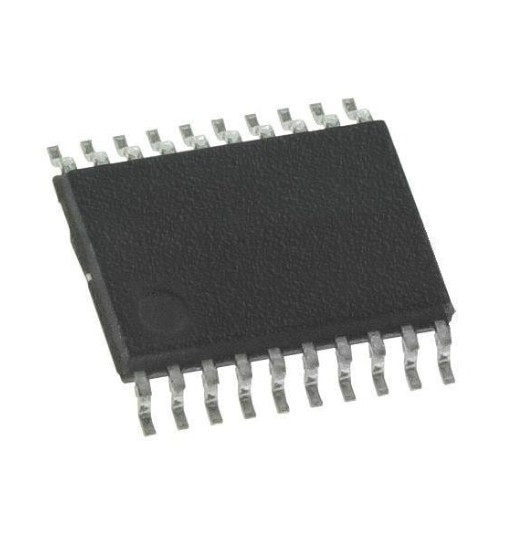

MAX3222EEUP+T
Manufacturer Part Number: MAX3222EEUP+T | Manufacturer / Brand: Analog Devices Inc |
Part of Description: SoC FPGA MAX3222EEUP+T | Lead Free Status / RoHS Status: Lead free / RoHS Compliant |
Ship From: HK/Shen Zhen | Shipment Way: DHL/Fedex/TNT/UPS |
Datasheets: |
Product parameters
Manufacturer | Analog Devices Inc |
RoHS | Details |
Package | Reel |
Package / Case | TSSOP-20 |
Mounting Style | SMD/SMT |
Brand | Analog Devices / Maxim Integrated |
Maximum Operating Temperature | -40 C |
Minimum Operating Temperature | +85C |
Series | MAX3222E |
Factory Pack Quantity | 2500 |
Moisture Sensitive | Yes |
Data Rate | 250 kb/s |
Supply Voltage – Max | 5.5 V |
Supply Voltage – Min | 3 V |
Unit Weight | 0.006737 oz |
Operating Supply Voltage | 3 V to 5.5 V |
ESD Protection | 15 kV |
Propagation Delay Time | 0.3 ns |
Get in touch with us now
MAX3222EEUP+T Applications:
Microcontroller Communication:
Used for serial communication between microcontrollers or microprocessors and other devices using the RS-232 protocol.
Peripheral Interfaces:
Integrated into systems where RS-232 communication is required for interfacing with peripherals such as printers, scanners, or external storage devices.
Industrial Automation:
Applied in industrial automation systems for communication between programmable logic controllers (PLCs), sensors, human-machine interfaces (HMIs), and other industrial devices.
Test and Measurement Equipment:
Utilized in test and measurement instruments for serial communication with computers or other control systems.
Data Acquisition Systems:
Used in data acquisition systems where RS-232 is the communication protocol for transmitting sensor data over short distances.
Telecommunication Equipment:
Applied in telecommunication equipment where RS-232 communication is required for configuration, control, or data exchange.
Networking Equipment:
Integrated into networking equipment for serial communication interfaces between devices such as routers, switches, or network management modules.
GPS Receivers:
Utilized in GPS receivers for communication with other devices or systems using the RS-232 protocol.
Security Systems:
Used in security systems for communication between control panels, sensors, and other security devices.
Point-of-Sale (POS) Systems:
Integrated into POS terminals and systems for communication between point-of-sale devices and central servers.
Automotive Diagnostics:
Applied in automotive diagnostic tools and devices that communicate with vehicle systems through RS-232.
Consumer Electronics:
Integrated into various consumer electronics devices for communication with other devices or computers.
Smart Home Systems:
Used in smart home devices for communication with central control units or other smart devices.
Robotics:
Applied in robotics applications for communication between controllers, sensors, and actuators.
Audio/Video Equipment:
Utilized in audio/video equipment for serial communication with other devices or control units.
Battery-Powered Devices:
Used in battery-powered devices where low power consumption and efficient RS-232 communication are required.
Instrumentation:
Applied in instrumentation systems for serial communication with computers or data acquisition systems.
