MAX14776EASA+T

The MAX14776EASA+T is an advanced quad-channel, bidirectional digital isolator IC manufactured by Maxim Integrated. Here are its key features and characteristics:

1. Quad-Channel Digital Isolator: Provides four independent channels for bidirectional digital signal isolation, enabling safe and reliable data communication between different voltage domains.
2. High-Speed Operation: Supports high-speed data transmission with rates up to 1Mbps, ensuring fast and accurate digital communication.
3. Robust Isolation: Offers galvanic isolation between input and output channels, protecting sensitive electronics from high voltages, noise, and surges.
4. Low Power Consumption: Designed for low power operation, making it suitable for energy-sensitive applications and systems requiring high efficiency.
5. Wide Operating Range: Operates over a wide voltage range, accommodating different system requirements, typically supporting up to 5.5V on both input and output sides.
6. Integrated Protection: Features electrostatic discharge (ESD) protection and failsafe operation, ensuring reliable performance even in harsh environments.

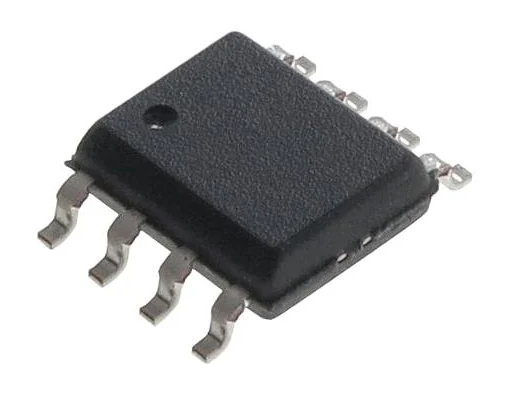

7. Compact Package: Available in a small SOIC-8 package, facilitating easy integration into space-constrained designs.
8. Applications: Ideal for industrial automation, medical equipment, data acquisition systems, and any application requiring reliable isolation and communication between different voltage domains.

The MAX14776EASA+T is well-suited for applications that need robust, fast, and energy-efficient digital signal isolation in complex electronic systems.
