LTC1799CS5#TRPBF

The LTC1799CS5#TRPBF is a precision, low-power oscillator from Analog Devices, designed to provide a programmable square wave output with frequencies ranging from 1kHz to 33MHz. It is ideal for clock generation in digital systems, communications, and other timing applications.

Description:

• Type: Precision Oscillator
• Manufacturer: Analog Devices

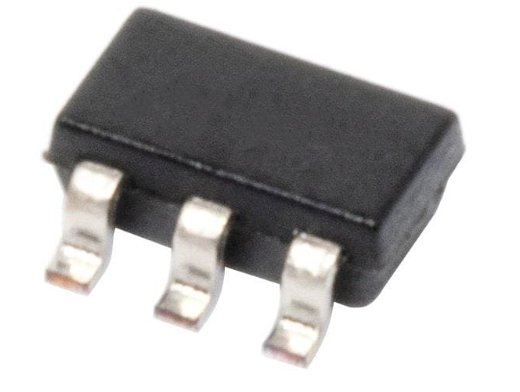

• Package: SOT-23-5 (Small Outline Transistor)
• Frequency Range: 1kHz to 33MHz (programmable)
• Supply Voltage Range: 2.7V to 5.5V
• Output Type: Square wave

Key Features:

• Programmable Output Frequency: Allows easy adjustment of output frequency using external resistors, offering flexibility in clock generation.
• Low Power Consumption: Efficient operation, making it ideal for battery-powered and low-power systems.
• Wide Frequency Range: Covers a broad range of output frequencies from 1kHz to 33MHz, suitable for various timing applications.
• High Precision: Provides a stable and accurate frequency source with minimal temperature drift.
• Compact Package: Housed in a small SOT-23-5 package, allowing for integration in space-constrained designs.

Applications:

• Clock Generation: Ideal for providing timing signals in microcontroller and digital logic circuits.
• Communication Systems: Suitable for use in RF and wireless applications where precise clock signals are required.
• Test and Measurement Equipment: Used as a reference clock in oscilloscopes, signal generators, and other test equipment.
• Consumer Electronics: Provides accurate timing for portable devices and embedded systems.

Package Dimensions:

• SOT-23-5: A small surface-mount package designed for compact and portable electronic systems.

Reference Documents:

For detailed technical specifications and design recommendations, refer to the LTC1799CS5#TRPBF datasheet available from Analog Devices’ official website.
