LPC1768FBD100

The LPC1768FBD100 is a high-performance ARM Cortex-M3 based microcontroller from NXP Semiconductors, designed for embedded applications requiring efficient control and connectivity. It offers a wide range of peripherals, making it suitable for applications such as industrial control, automation, and communication systems. Here are the key features and specifications:

1. Core:
   • ARM Cortex-M3: 32-bit RISC processor core, running at speeds up to 100 MHz, offering excellent performance and low power consumption.
2. Memory:
   • Flash Memory: 512 KB of on-chip flash memory for program storage.
   • SRAM: 64 KB of SRAM, split into multiple regions for efficient data handling.
3. Peripheral Interfaces:
   • Ethernet MAC: Integrated 10/100 Mbps Ethernet MAC for network connectivity.
   • USB 2.0: Full-speed USB 2.0 interface with integrated PHY for device/host/OTG support.
   • CAN: Controller Area Network (CAN) interface for industrial communication.
   • I²C, SPI, UART: Multiple I²C, SPI, and UART interfaces for communication with external devices.
   • GPIO: General-purpose input/output pins for user-defined functionality.
4. Timers and PWM:
   • General Purpose Timers: Multiple 32-bit timers for event timing and control.
   • PWM: Integrated Pulse Width Modulation (PWM) channels for motor control, power regulation, etc.
5. Analog Interfaces:
   • ADC: 12-bit Analog-to-Digital Converter (ADC) with up to 8 channels for analog signal input.
   • DAC: 10-bit Digital-to-Analog Converter (DAC) for analog signal output.
6. Power:
   • Low Power Modes: Offers various power-saving modes including sleep, deep-sleep, and deep-power-down to optimize power consumption.
   • Operating Voltage: Works within a range of 2.0V to 3.6V, making it suitable for low-power designs.
7. Package:

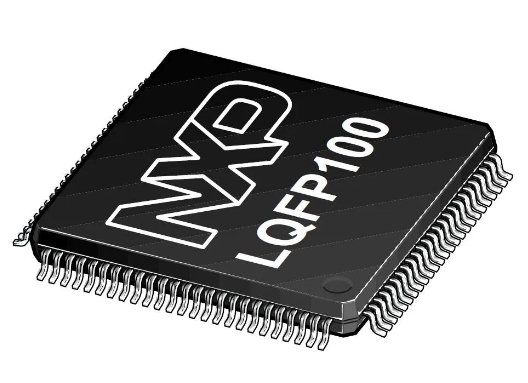

   • Package Type: Available in a 100-pin LQFP (Low-profile Quad Flat Package) for easy integration into hardware designs.
8. Debugging and Development:
   • JTAG and SWD: Supports standard debugging interfaces like JTAG and Serial Wire Debug (SWD) for development and troubleshooting.
9. Applications:
   • Industrial Automation: Ideal for controlling machinery and systems in industrial environments.
   • Embedded Systems: Suitable for a wide range of embedded systems requiring advanced connectivity and control features.
   • Networked Devices: Suitable for applications involving Ethernet and CAN networked communication.

The LPC1768FBD100 is a powerful microcontroller offering rich peripherals and high-speed processing, making it a versatile solution for complex embedded and industrial applications.
