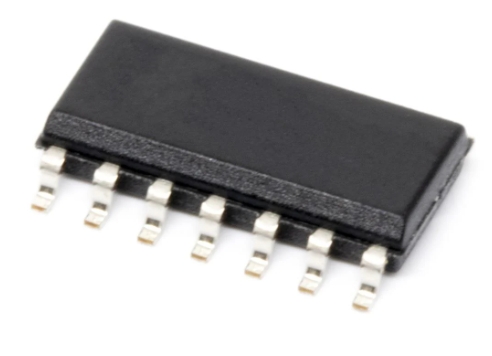

IRS21864STRPBF

IRS21864STRPBF is a high-voltage, high-speed driver IC designed to drive both low-side and high-side N-channel MOSFETs and IGBTs in half-bridge configurations. Here’s a general description:

• Type: High-Voltage MOSFET and IGBT Driver IC
• Gate Drive Voltage: Capable of operating with logic inputs from 3.3V to 20V.
• Driver Configuration: Half-bridge gate driver for driving high-side and low-side transistors.
• Operating Voltage: Can handle high-side voltages up to 600V, making it suitable for high-voltage applications.
• Dead-Time Control: Built-in dead-time prevents shoot-through between high- and low-side MOSFETs.
• Propagation Delay: Fast propagation delays to enable high-speed switching operations.
• Package: Offered in an 8-lead SOIC package (Surface-mount design).
• Applications: Ideal for motor control, power supplies, inverters, and other high-voltage switching circuits.
• Features:
  • Under-voltage lockout
  • Independent control for high- and low-side MOSFETs
  • Bootstrap supply for the high-side driver

This device is well-suited for high-speed, high-power switching applications, ensuring efficient control of MOSFETs or IGBTs in half-bridge configurations.
