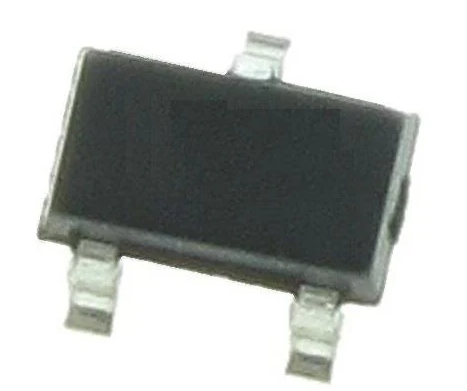

IRLML6402TR

The IRLML6402TR is a P-channel MOSFET designed for switching and load management in low-voltage applications. Manufactured by Infineon Technologies, this MOSFET is optimized for high efficiency in small, space-constrained devices. Here are its key features:

1. Type:
   • P-Channel MOSFET.
2. Voltage and Current Ratings:
   • Drain-to-Source Voltage (Vds): -20V.
   • Continuous Drain Current (Id): -3.7A, making it suitable for medium power switching applications.
3. RDS(ON) Resistance:
   • Low RDS(ON) resistance, as low as 0.045Ω, ensuring minimal conduction losses, which improves efficiency.
4. Gate Threshold Voltage (Vgs):
   • Gate threshold voltage typically around -1V to -3V, enabling control at low voltage levels.
5. Package:
   • Available in a compact SOT-23 package, ideal for small and portable devices where board space is limited.
6. Applications:
   • Suitable for load switching in battery-powered devices, power management in portable electronics, DC-DC converters, and low-voltage motor drives.
7. Switching Speed:
   • High switching speed, making it efficient for rapid on/off control in various applications.
8. Thermal Performance:
   • Capable of operating at high temperatures, with a junction temperature range from -55°C to +150°C.
9. Efficiency:
   • Designed to offer low power loss, making it ideal for energy-conscious designs like mobile devices and power supplies.

The IRLML6402TR P-channel MOSFET is perfect for applications requiring compact, low-voltage, and efficient power control, especially in portable and battery-operated devices.
