IRLML6401TRPBF

The IRLML6401TRPBF is a P-channel MOSFET designed for high-efficiency switching in various power management applications. Here’s a detailed description:

• Type: P-Channel MOSFET.
• Drain-Source Voltage (Vds): Rated at -20V, suitable for low-voltage switching applications.
• Continuous Drain Current (Id): Can handle up to -3.7A, making it ideal for low-power and battery-powered systems.
• Rds(on): Very low on-resistance (typically 0.055 ohms at Vgs = -4.5V), minimizing conduction losses and improving efficiency.
• Gate Threshold Voltage: Low gate threshold voltage allows operation at low logic levels, making it compatible with low-voltage control circuits.

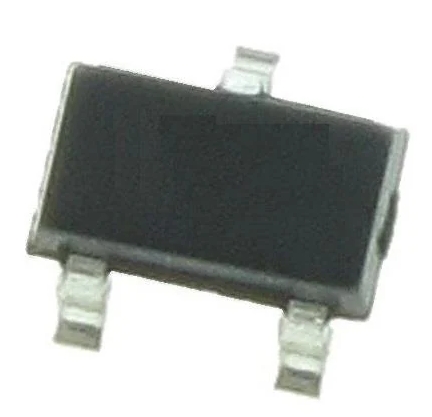

• Package: Supplied in an ultra-compact SOT-23 package for surface mounting, ideal for space-constrained designs.
• Applications: Widely used in load switches, DC-DC converters, power management circuits, and portable electronics.

The IRLML6401TRPBF offers efficient performance in low-voltage switching applications, providing fast switching speed, low gate drive requirements, and minimal power loss in compact systems.
