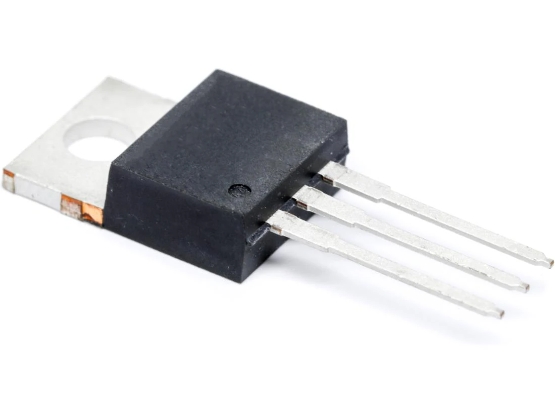

IRFB3077PBF

The IRFB3077PBF is an N-channel MOSFET designed for high-performance switching applications. Here’s a detailed description:

• Type: N-Channel Power MOSFET.
• Drain-Source Voltage (Vds): Rated at 75V, making it suitable for medium to high-voltage applications.
• Continuous Drain Current (Id): Handles up to 120A, providing substantial current capability for demanding power applications.
• Rds(on): Low on-resistance of approximately 0.0035 ohms (at Vgs = 10V), which helps minimize conduction losses and improve efficiency.
• Gate Charge: Moderate gate charge (typically around 220 nC), supporting efficient switching performance.
• Package: Available in a D2PAK package, which provides excellent thermal management and high-current handling capabilities.
• Applications: Ideal for use in power supplies, motor drives, and DC-DC converters where high current and low on-resistance are crucial.
• Features:
  • Fast Switching: Designed for efficient high-speed switching.
  • Thermal Management: The D2PAK package allows for effective heat dissipation, handling high power dissipation.

The IRFB3077PBF offers high performance with low on-resistance and high current capability, making it suitable for high-power and high-efficiency switching applications.
