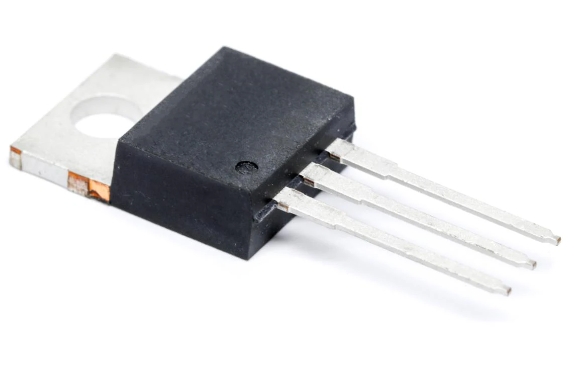

IRF540NPBF

1. Type:
   • N-channel MOSFET optimized for high-efficiency power switching.
2. Voltage Rating:
   • 100V maximum drain-to-source voltage (V_DS), suitable for medium-voltage applications.
3. Current Rating:
   • Capable of handling up to 33A continuous drain current, providing robust performance in high-current applications.
4. On-Resistance:
   • Low R_DS(on) of 0.077 Ω, reducing conduction losses and improving overall efficiency.
5. Gate Charge:
   • Moderate total gate charge of 71 nC, allowing efficient driving with reduced power losses.
6. Switching Speed:
   • Designed for fast switching, suitable for high-frequency applications.
7. Package:
   • Housed in a TO-220 package, offering effective heat dissipation and ease of integration into various circuit designs.
8. Applications:
   • Ideal for use in power supplies, motor drives, DC-DC converters, and other power management applications where reliable and efficient switching is required.

The IRF540NPBF delivers high performance with its low on-resistance, high current capability, and fast switching characteristics, making it a versatile choice for demanding power electronics applications.
