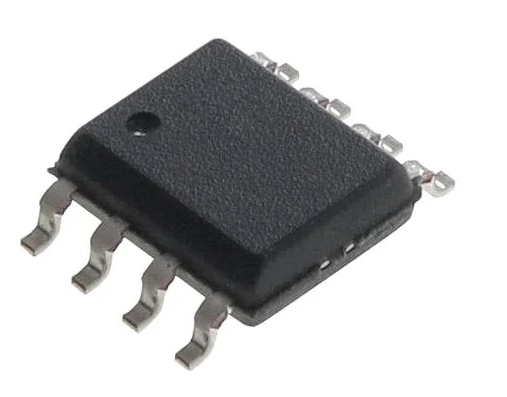

IR2184STRPBF

The IR2184STRPBF is a high- and low-side gate driver IC designed to efficiently drive MOSFETs and IGBTs in various power applications. Here’s a detailed description:

• Type: High- and Low-Side Gate Driver IC.
• Voltage Rating: Operates with a maximum high-side voltage of up to 600V, suitable for high-voltage power switching.
• Current Drive: Delivers peak output currents of 2.5A for sourcing and 2.5A for sinking, providing robust drive capability for power transistors.
• Propagation Delay: Low propagation delay of around 300ns for fast switching and improved system efficiency.
• Bootstrap Circuitry: Integrated bootstrap diodes facilitate high-side driving, reducing the need for additional external components.
• Protection Features: Includes under-voltage lockout (UVLO) for both high- and low-side drivers to protect against operation under insufficient supply voltage.
• Package: Available in a 16-pin SOIC package, providing a compact and easy-to-mount solution for various electronic designs.
• Applications: Suitable for use in motor drives, high-voltage inverters, DC-DC converters, and other power electronics requiring efficient gate drive control.

The IR2184STRPBF is engineered to offer reliable and efficient gate driving with integrated bootstrap and protection features, making it ideal for high-voltage and high-current power switching applications.
